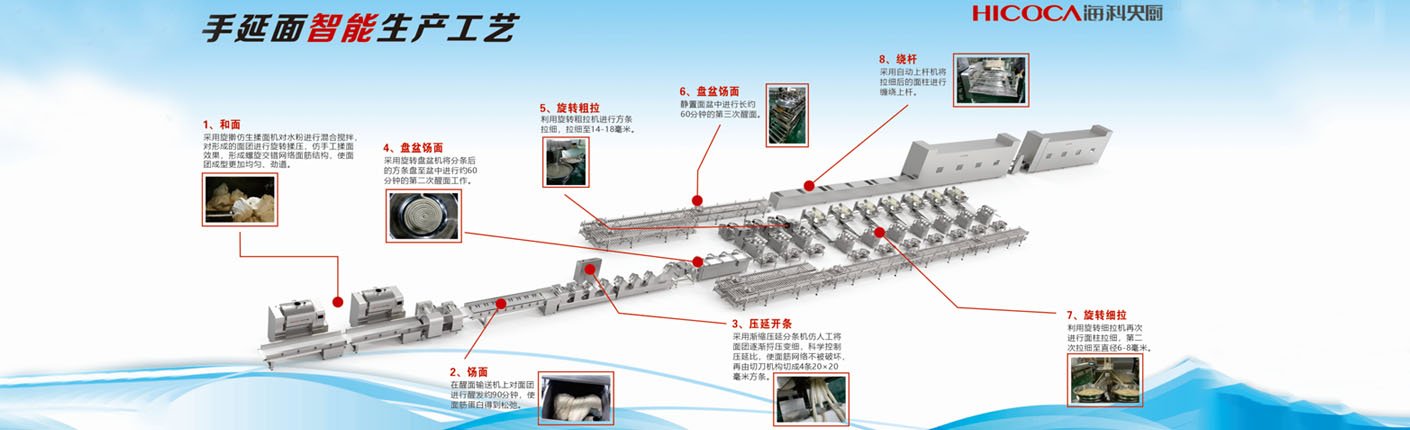

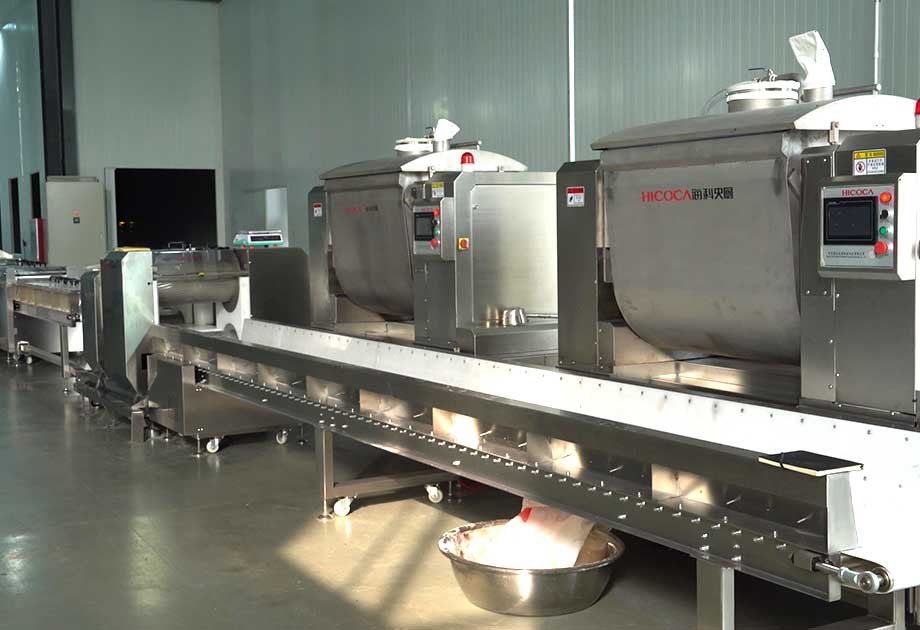

Product Name: Smart Production Line For Hand-Rolled Noodles

Product Model: HMJ-150

Main Technical Parameters:

Rated Voltage: 380V

Rated Power: 9kW

Capacity: 100-150kg

Compressed Air: 0.4-0.6MPa

Dimensions: 1610*810*1600mm (L×W×H)

Applications: Dough making for steamed buns, dumplings, bread, and ramen noodles

Product Highlights:

◆ Manual kneading and mixing technology for faster dough maturation and more uniform texture.

◆ Simple internal structure of the dough mixing pot for safer and easier cleaning.

Fully automatic ingredient mixing and one-touch operation.

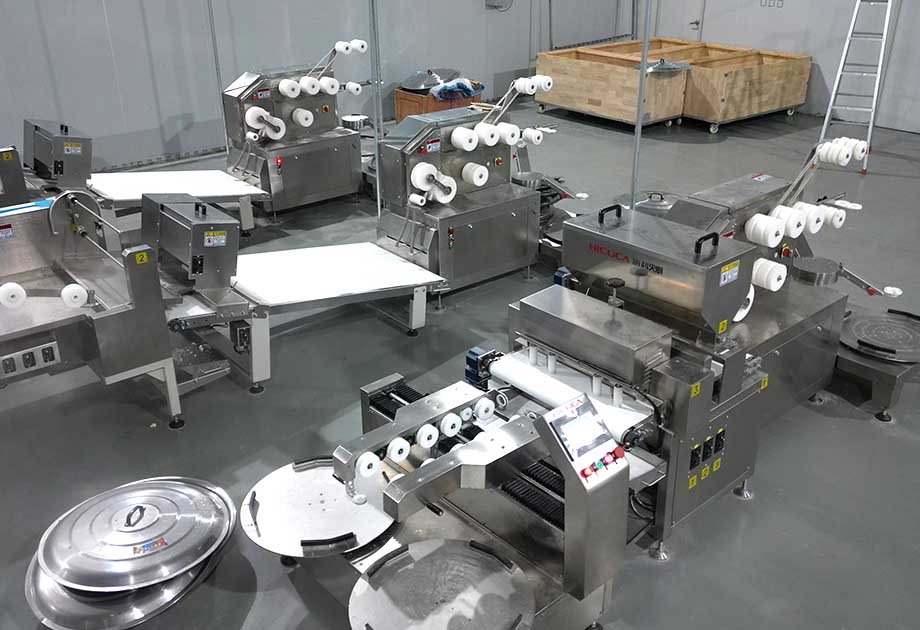

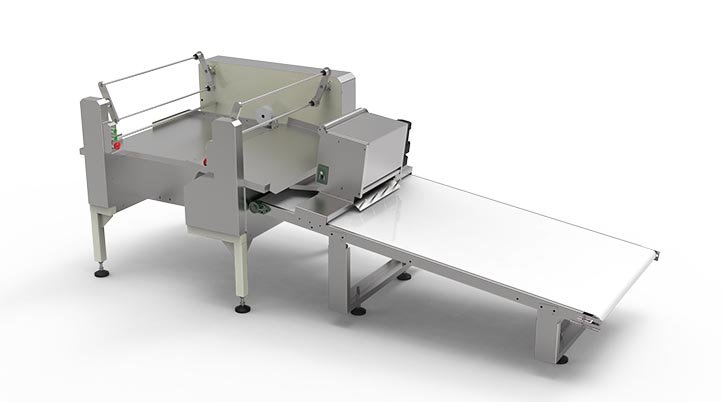

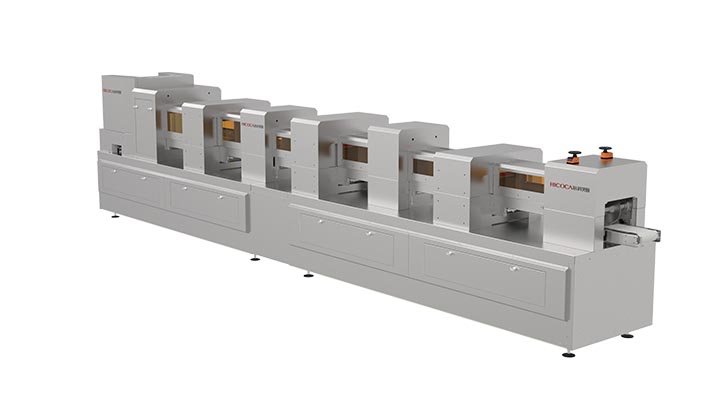

Product Model: MJSYM/30

Application: Suitable for hand-pulled noodles, continuous dough thinning, narrowing, and strip cutting.

Product Highlights: Continuously thins and narrows wide noodle strips according to production volume and product requirements, resulting in uniform width and thickness.

Strips can be cut into different sizes as needed, ensuring uniform strips and smooth end surfaces.

Multi-node precision monitoring and combined servo and frequency conversion control ensure full synchronization of noodle strips across the production line, ensuring smooth, no-bump, no-break production. This increases automation while also improving production efficiency and stability.

All detection components are high-quality domestic and international brands, ensuring high stability and long service life.

Key Technical Parameters:

Rated Voltage: 380V

Rated Power: 3.8KW

Output Noodle Thickness: 20-30mm

Number of Rolling Times: 4

Dimensions: 4800x730x1400 (l x w x h) mm

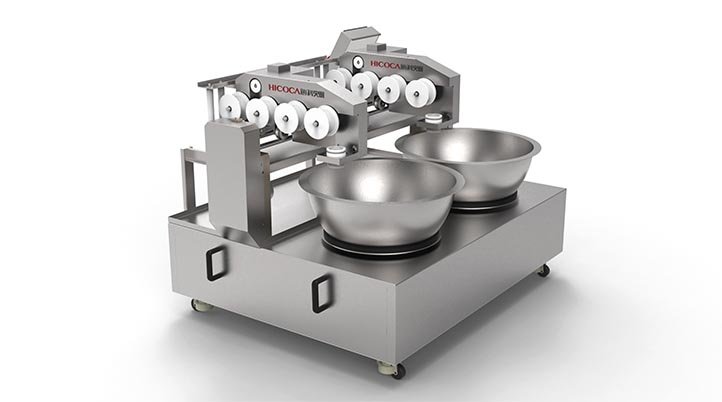

Product Model: MLMPP/2

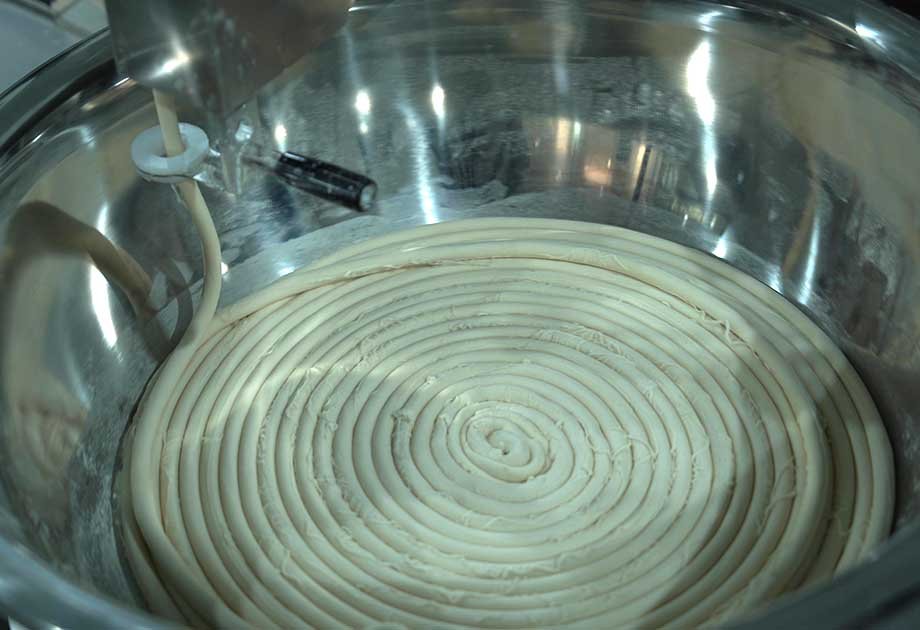

Application: Suitable for collecting and proofing hand-pulled noodle dough.

Product Highlights: Noodle dough is compactly stacked in the bowl, facilitating its proofing and improving the quality and taste of the noodles.

Highly automated, it allows for efficient stacking without manual intervention.

Main Technical Parameters:

Rated Voltage: 220V

Rated Power: 1.7kW

Dimensions: 1620x1330x1120mm (L×W×H)

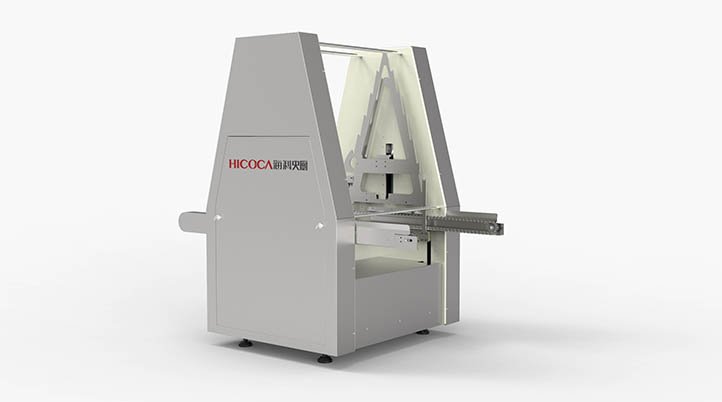

Product Model: MLMRG O/80

Application: Suitable for winding and placing hand-pulled noodles on the rod after the fine-drawing process, while also providing moderate stretching.

Product Highlights: Noodle winding with a fast winding speed and stable winding spacing;

Widely applicable, the machine can be used to wind noodles of varying thicknesses by adjusting the machine's operating parameters.

Can wind noodles on a single rod or two simultaneously, improving work efficiency;

Dual-station winding with alternating winding operations improves work efficiency and production capacity;

The machine's winding process is smooth, ensuring uniform force distribution on the noodles, ensuring excellent stretching, and maintaining the noodles' internal elasticity.

Main Technical Parameters:

Rated Voltage: 220V

Rated Power: 0.5kW

Input Noodle Diameter: 4-12mm

Wounding Speed: 23s/Rod

Device Dimensions: 1300×1200×1000 (L×W×H) mm

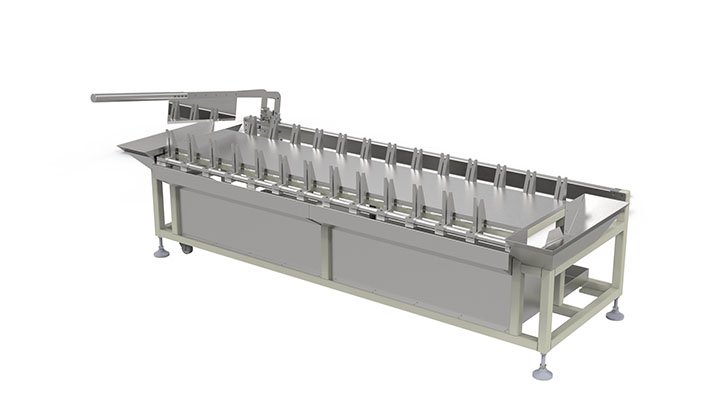

Product Model: MLMTM/800

Application: Suitable for progressive stretching of hand-pulled noodles after wrapping and resting.

Product Highlights: Based on the gluten-forming process, this machine progressively stretches the noodles, achieving gradual expansion without damaging the gluten.

The machine ensures a smooth noodle-pulling process, evenly distributes force on the noodles, and achieves excellent stretching results.

Multiple groups of noodles can be stretched simultaneously, resulting in high efficiency and speed, significantly increasing production capacity.

Multi-stage progressive stretching maintains the gluten of the noodles, resulting in a more elastic finished product.

Key Technical Parameters:

Rated Voltage: 380V

Rated Power: 0.4kW

Efficiency: 600kg/h

Number of Stretches: 7

Dimensions: 2500×1300×2000 (L×W×H) mm

The cut surface is neat, no broken surface is produced, the equipment is durable, and the use of hand-rolled noodle cutting machine can greatly improve work efficiency.
