Product Display

Advanced Technology, Economical And Reasonable Production Efficiency

Product Description

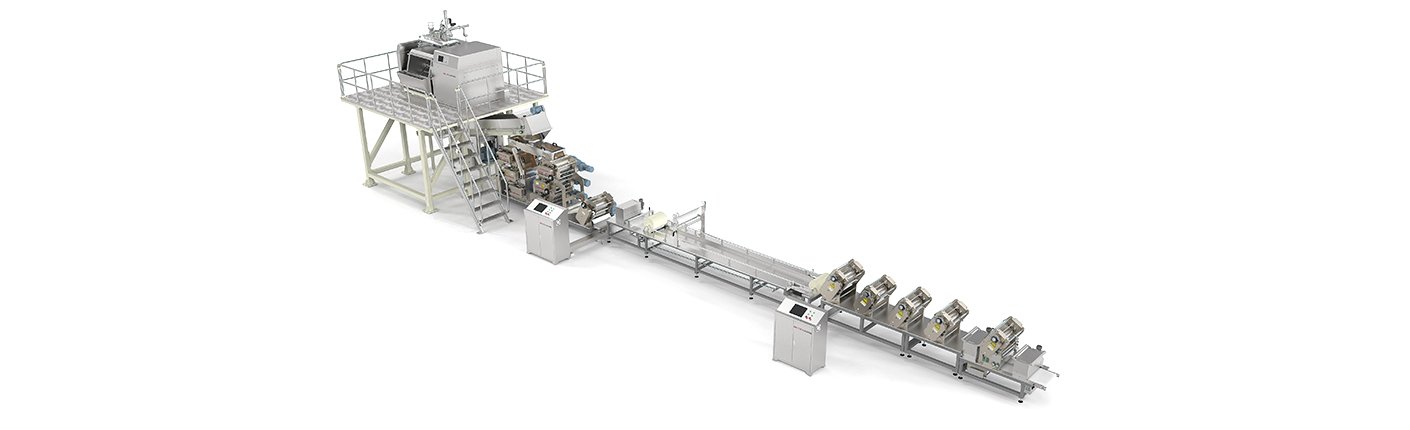

  • _0006_0888d3fbece66b30013d9f58f6bb1d3

1. Innovative noodle-making process:  A unique, continuous rolling mechanism combines dough sheets and strands, creating a rich, multi-layered gluten network.  After rolling and steaming, the noodles are further processed, resulting in fresh, wet noodles that are more elastic, chewy, and smooth.

2. High automation: From the dough mixing to the final packaging of the fresh noodles, the entire process is fully automated, requiring no manual intervention.

3. Modular production line design: The production line consists of several functional modules, allowing for flexible configuration based on customer needs and factory layout, maximizing output with minimal investment.

4. High-quality components:  All detection and control components are sourced from leading domestic and international brands, ensuring high reliability and long service life.

Product Parameters

Maximum Capacity

Roller Width

Power

Gas Source Pressure

Land Area

600kg/h(Production capacity can be customized)

350mm

35kW

0.6-0.7Mpa

15m×2.5m=37.5m²

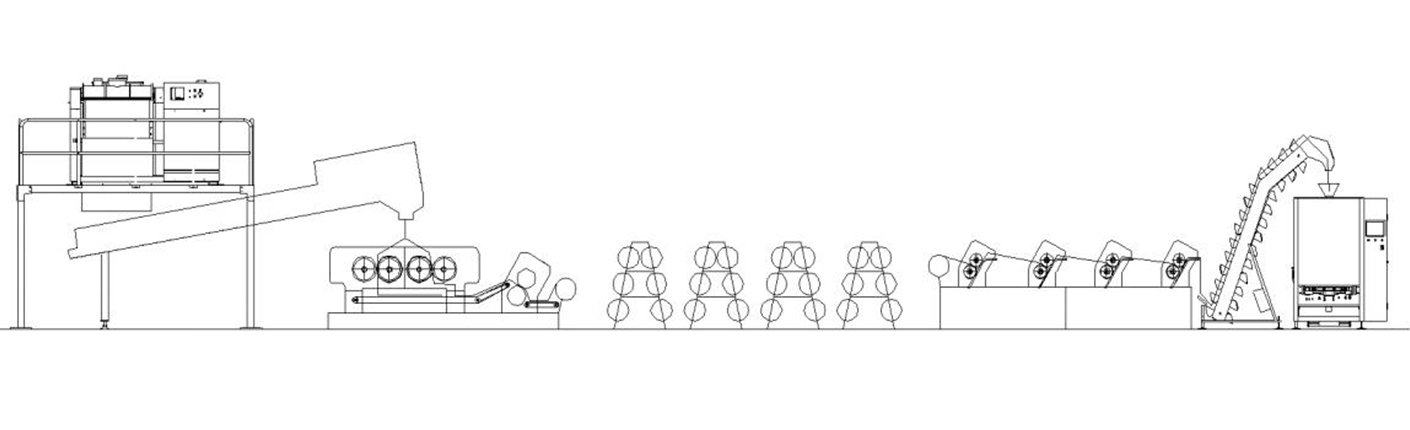

Product Layout

Process Flow

  • 01

    Dough Mixing

  • 02

    Dough Proofing

  • 03

    Laminating

  • 04

    Gelatinization

  • 05

    Sheeting

  • 06

    Noodle Strand Cutting

  • 07

    Packaging

Features

  • 01

    Al Dente

  • 02

    Smooth And Slippery

  • 03

    Springy

  • 04

    Wheat Aroma

  • 05

    Fine Texture

  • 01

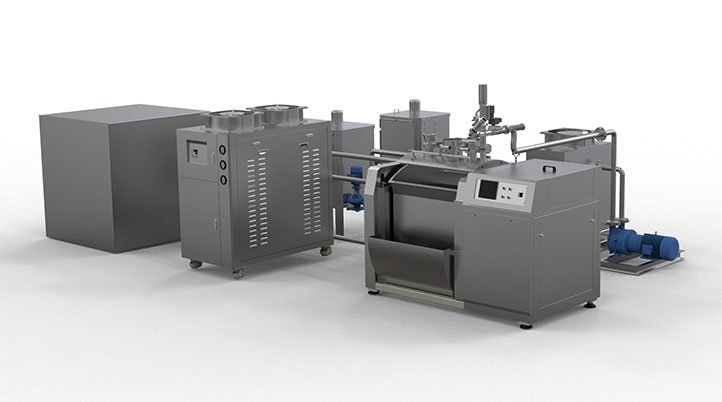

    Vacuum Kneading Machine

    Compared to conventional kneading under atmospheric pressure, vacuum kneading offers the following advantages:

    ① Under vacuum conditions, the water sprayed in easily atomizes, ensuring uniform distribution;

    ② In a vacuum environment, the absence of air bubbles in the flour allows water to penetrate more easily, improving the kneading effect;

    ③ Vacuum kneading produces a denser dough structure;

    ④ Vacuum kneading allows for the use of more water during the kneading process;

    ⑤ Vacuum kneading reduces the required ripening time;

    ⑥ The dough generates less heat, resulting in a lower temperature.

  • 02

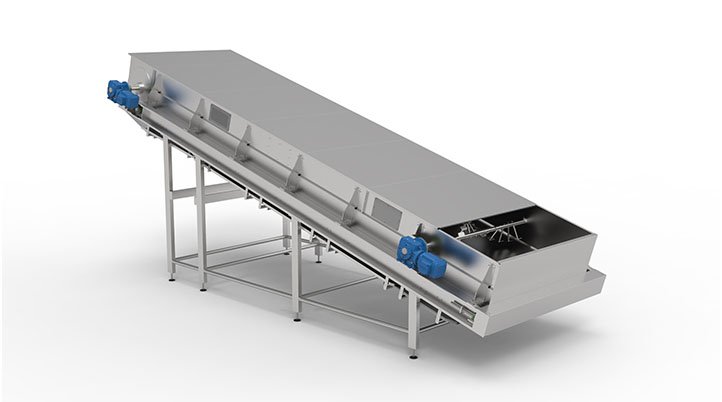

    Gelatinization Conveyor

    1. It innovatively introduces the concept of static dough resting into mechanization. The conveyor belt feeding system ensures FIFO (First-In-First-Out) material flow.

    2. The fully enclosed design prevents moisture loss, maintaining optimal humidity and temperature for consistent dough hydration and improved uniformity.

    3. The flour-breaking mechanism employs a spiral auger. Its speed is synchronized with the conveyor belt, ensuring even feeding of small dough particles and guaranteeing consistent sheeting.

  • 03

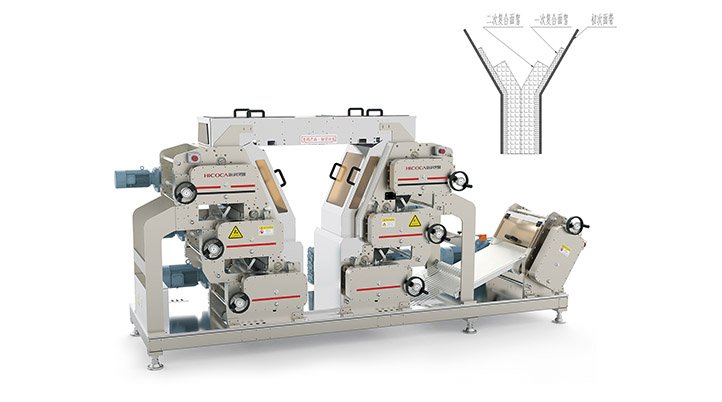

    Sheet And Fiber Composite Laminating Machine

    Equipment Model: MYMV 7/350

    Product Highlights:

    1. The machine uses 7 pairs of high-chromium alloy rollers and 7 independent three-phase frequency-conversion motors, ensuring excellent rolling performance.

    2. The overall V-shaped design facilitates easy cleaning and maintenance.

    3. Continuous automatic operation achieves a six-layer composite noodle sheet structure, resulting in noodles that are smooth on the outside, soft on the inside, dense yet airy, and with a uniquely chewy texture.

    4. All key components are sourced from reputable domestic and international brands, ensuring high stability and long service life.

  • 04

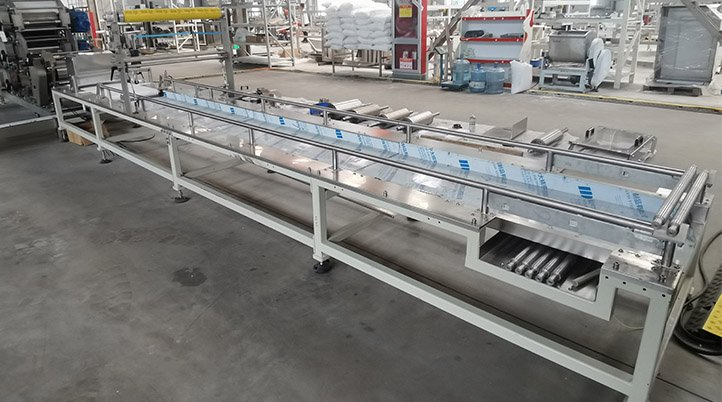

    Scroll Dough Proofing Machine

    ◆ Automatically rolls dough sheets into scrolls for the proofing process.

    ◆ The outer surface of the dough scrolls can be manually wrapped in plastic film to prevent moisture loss.

    ◆ Utilizes the dough's natural heat and moisture retention for an enhanced proofing effect.

    ◆ Capacity: Can store up to 10 sets of proofing dough scrolls.

  • 05

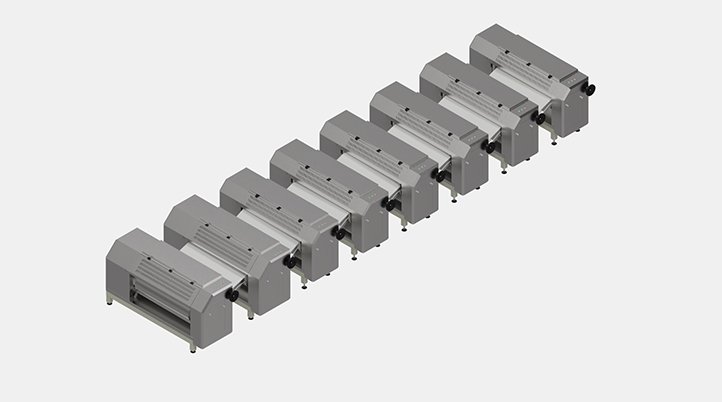

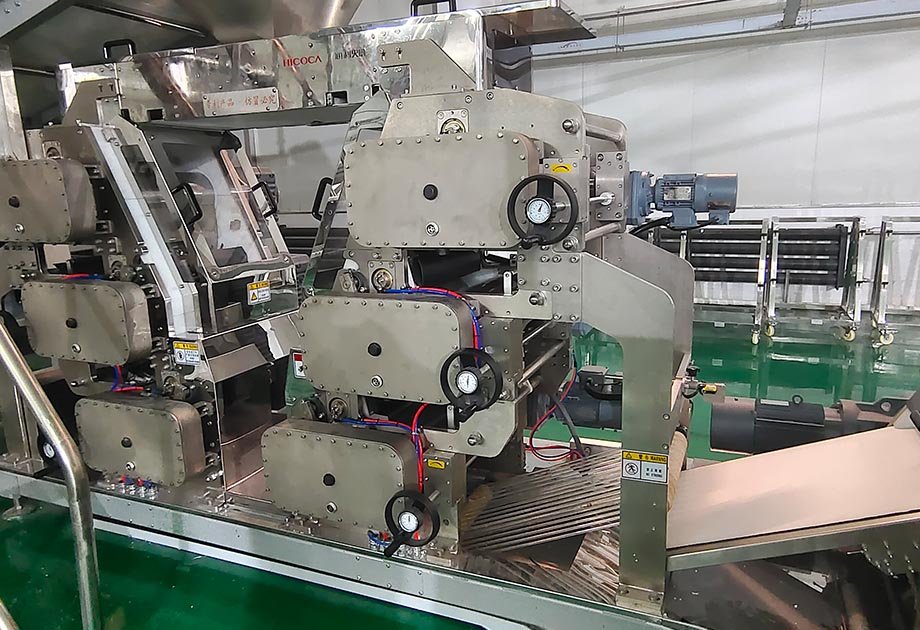

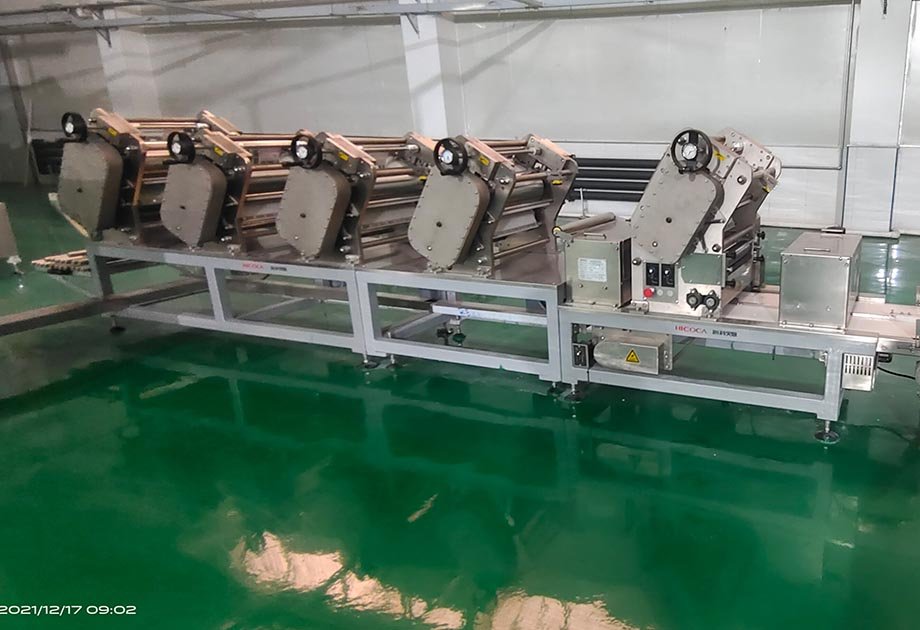

    Sheeting and Strand Cutting

    ◆ The dough sheet is progressively thinned through continuous roller sheeting, forming a dense, uniform sheet that meets specified thickness requirements. This process develops a more complete gluten network, ensures even moisture distribution, and gives the sheet enhanced toughness and strength.

    ◆ All continuous sheeting rollers are driven by independent frequency-controlled motors, allowing for one-touch operation. The system features automatic sheet connecting for continuous operation without manual intervention. An advanced detection system, managed by PLC, automatically adjusts dough sheet tension to maintain synchronized roller speeds, ensuring consistent and uniform sheet flow.

    ◆ The cutting blades feature high-precision meshing teeth for clean, sharp cutting. They effectively split the sheet into distinct, separate strands.

    ◆ The resulting noodles exhibit a smooth, flat appearance free of burrs, lumps, or stuck strands. The cutting edges are clean without loose particles or debris, significantly improving the surface finish of the noodle strands.

  • 06

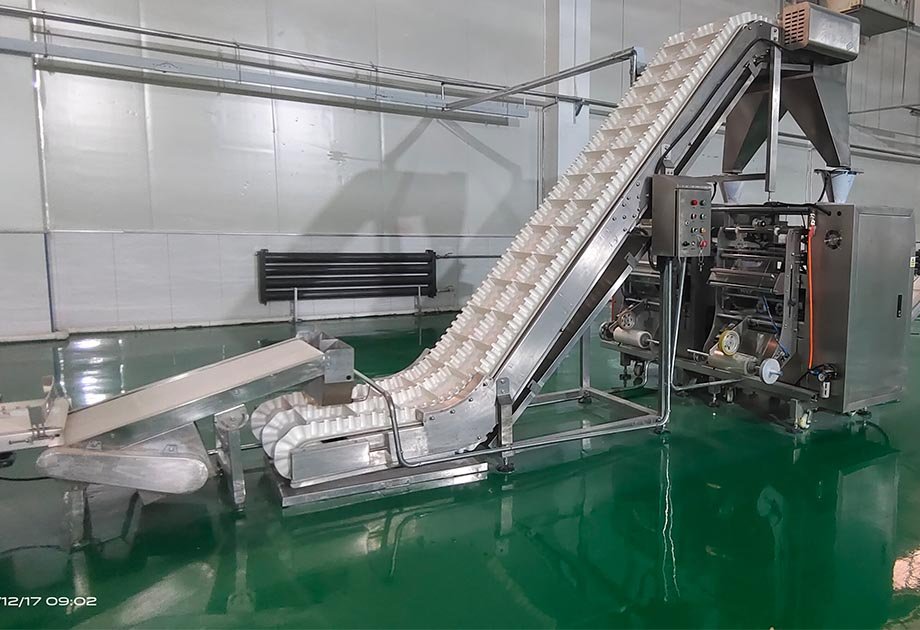

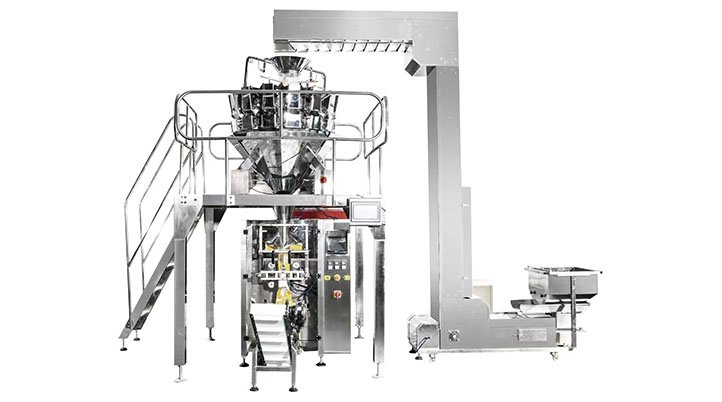

    Fresh Wet Noodle Packaging Machine

    1. Equipped with dual servo control, ensuring precise positioning, excellent packaging results, high production efficiency, and stable performance;

    2. All parameters can be adjusted via a user-friendly touchscreen interface, simplifying operation;

    3. Unique design features a compact and lightweight structure, saving space and facilitating easy movement;

    4. This equipment can simultaneously package various food products such as small bags of flour, dumplings, rice balls, and steamed buns.

    Application: Suitable for the entire process of conveying and plastic bag packaging of fresh, wet noodles, dumplings, rice balls, steamed buns, and similar products.

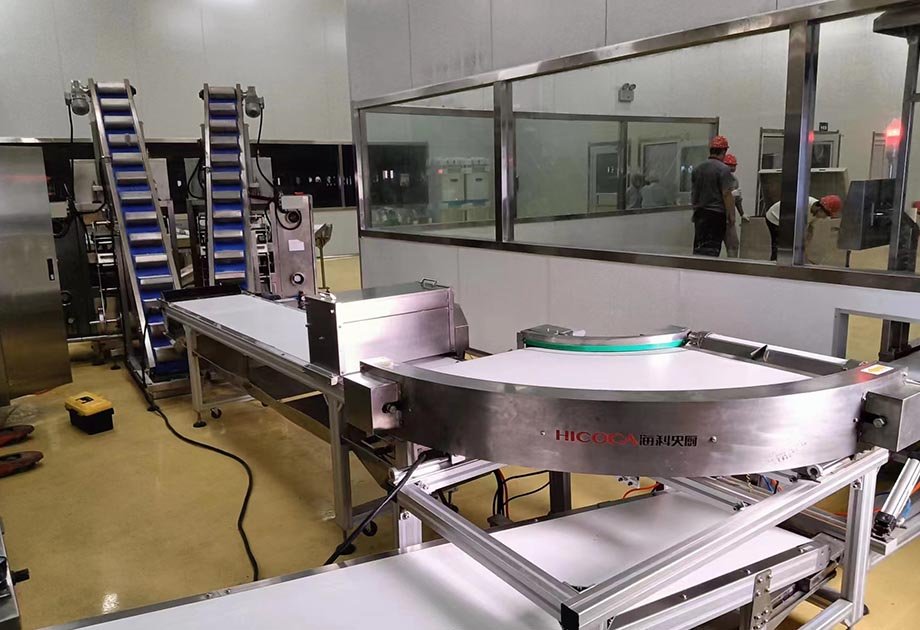

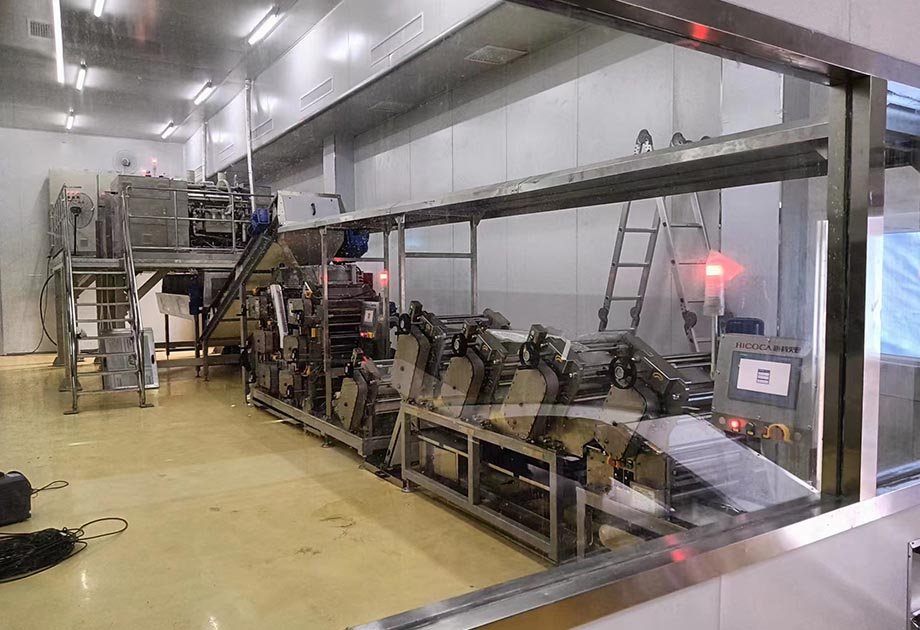

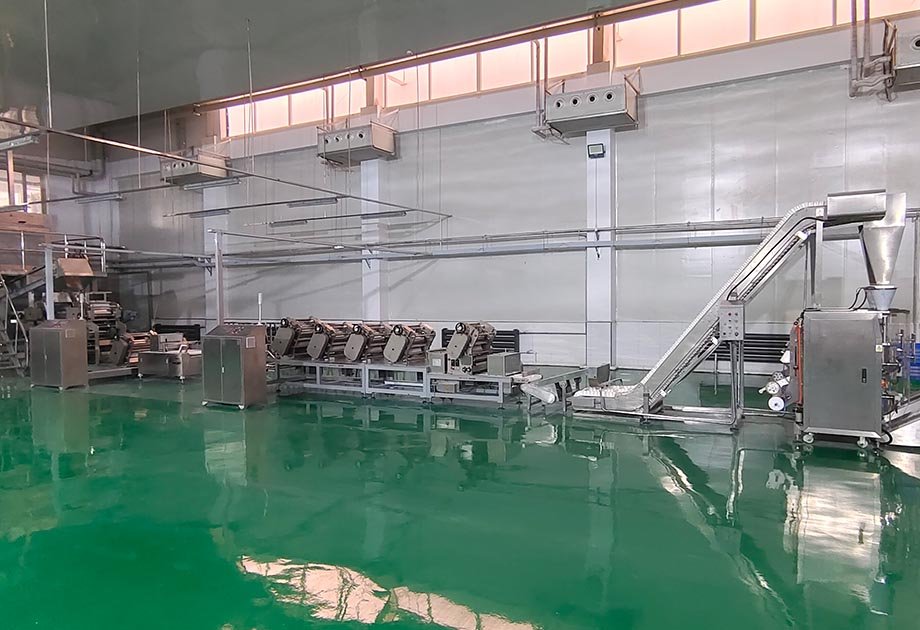

On-Site Solution Presentation

video-1

About HICOCA

Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.


Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.


Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
