Advanced Technology, Economical And Reasonable Production Efficiency
Category:Intelligent Packaging Equipment
Product Model:ZQMJ500/550/650/765 800/850/1000/1500
Overview:This Smart Cutting Machine is primarily used for cutting various types of long, strip-shaped food products, such as dried noodles, pasta, and rice noodles. It can precisely cut the products to different lengths as required, and performs functions such as automatic unloading, cutting, and automatic cleaning of the cutting mechanism.
Applicable Products:Dried noodles, pasta, rice noodles, etc.
For More Information, Please Call The Inquiry Hotline Below:
![_0000_一分钟了解海科佳挂面生产线[00_00_44][20221220-114150]](http://aliyun-hk01-cdn.hcwebsite.com/4f540bdaefcb2afc4e0b2dfbdc4fdee6/data/thumb/res/cn/20221221/18e222a58a1d5b31.jpg_20221221153654_1410x430.jpg?v=ljyFcZPk)
1. The structural design allows for simultaneous cutting of both layers or independent cutting of a single layer, with a maximum cutting width of 1500mm, resulting in a production efficiency increase of over 30%.
2. Independent operation of the upper and lower layers is possible, allowing for maintenance and servicing without interrupting production, thus meeting the requirements for continuous operation.
3. A cleaning mechanism automatically removes excess material from the cutting rod and automatically retracts the rod, reducing labor intensity and time, and preventing secondary contamination from operator contact.
4. Simple operation with one-button start; servo motor precisely controls the cutting length, ensuring clean, even cut edges without chipping or damage.
Rated Voltage | Frequency | Rated Power | Gas Consumption | Slitting Speed | Cutting Length Range | Maximum Device Dimensions L*W*H |
AC380V | 50～60Hz | 11.5kW | 6L/min | 16～20杆/min | 180～260mm | 4050x2200x2520mm |
Remove From Shelf
Cut Off
Clear The Rod
Return The Rod
Neat Cutting Edge
Automatic Rod Cleaning
Automatic Rod Retraction
Precise Control
01

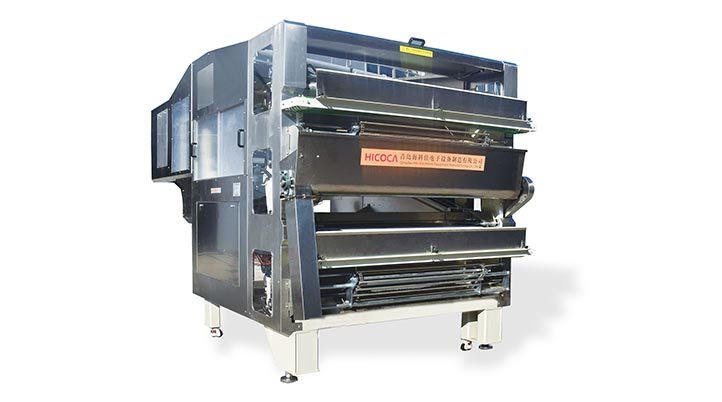

Model: ZQMJ1500S
Product Highlights:
1. The dual-layer design allows simultaneous cutting of both layers or independent cutting of a single layer, with a maximum cutting width of 1500mm, resulting in a 30% or more increase in production efficiency;
2. Independent operation of the upper and lower layers is possible, allowing maintenance and servicing without interrupting production, ensuring continuous operation of the production line;
3. Equipped with a cleaning mechanism that automatically removes excess material from the cutting rod and automatically retracts the rod, reducing labor intensity and time, and preventing secondary contamination from operator contact;
4. Simple operation with one-button start; servo motor precisely controls the cutting length, ensuring clean, even cut edges with no chipping.
02

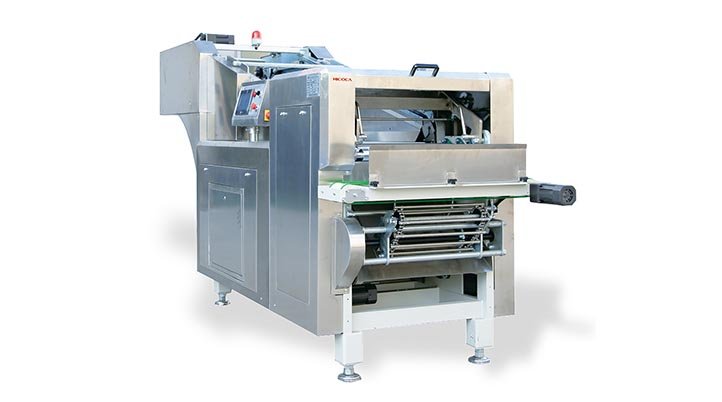

Model: ZQMJ500/550/650/765/800/850/1000/1500
Product Highlights:
1. Uses a chevron-shaped cutting blade for neat, clean cuts with minimal breakage;
2. Unique cutting blade and conveyor belt design eliminates the need for a separate cutting rod;
3. Features a waste material separation function to prevent leftover material from entering the conveyor and packaging process;
4. Equipped with a cleaning mechanism that automatically removes residue from the conveyor belt and facilitates automatic recycling of the conveyor belt, reducing manual handling and preventing secondary contamination;
5. Suitable for cutting noodles, pasta, and rice noodles in widths from 500mm to 1500mm.
03

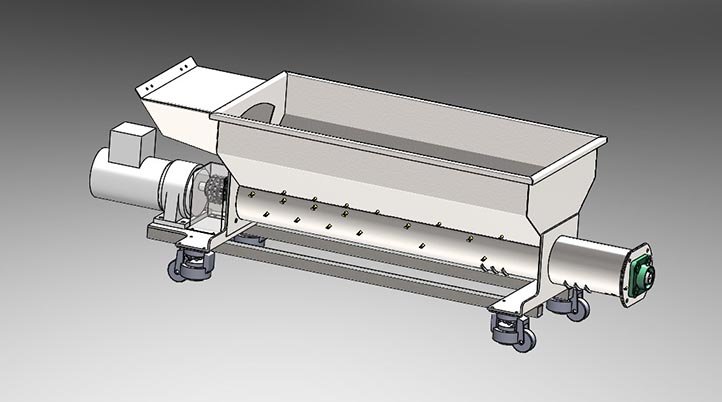

1. For applications requiring frequent manual feeding of materials, a V-type mixer is recommended;
2. For applications with higher grinding requirements, a U-type mixer is recommended;
3. The length of the mixer can be customized according to specific needs.
Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.
Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.
Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
