Product Display

Advanced Technology, Economical And Reasonable Production Efficiency

Product Description

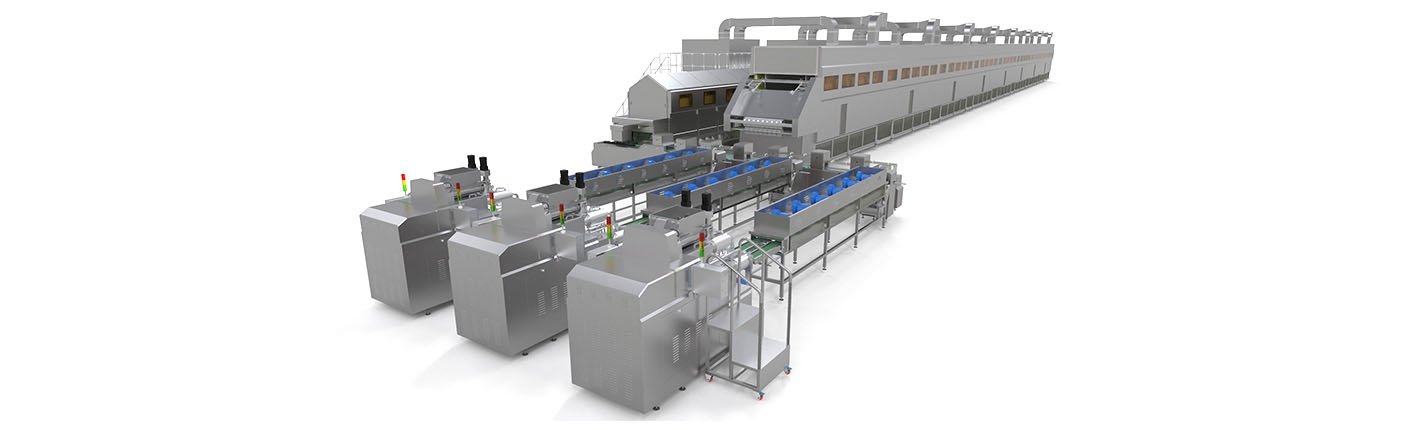

  • _0000_7264d38d9c33f9912001d18153ad9e1

◆ The PLC intelligent rice mixing system fundamentally solves the problem of accurate recipes.

◆ PLC intelligent control of the front-end rice washing, soaking, crushing, and powder mixing systems reduces labor intensity, while quantitative control improves moisture accuracy.

◆ The self-cooking rice noodle extruder achieves a cookedness of over 83%, with uniform rice noodle thickness and speed. The PLC intelligent drying chamber controls the internal temperature and humidity in real time, adding a stable temperature and moisture retention layout to ensure smooth drying. The dried rice noodle blocks are directly packaged.


Product Parameters

Production Capacity

Employment

Water Consumption

Power Consumption

Gas Consumption

250 kg x 3 units = 750 kg/hour

Prepare rice and bring it to the baking room, 6-7 people

1-1.2 tons/ton rice noodles

380 kWh of electricity per ton of rice noodles

1.6-1.8 tons/ton rice noodles

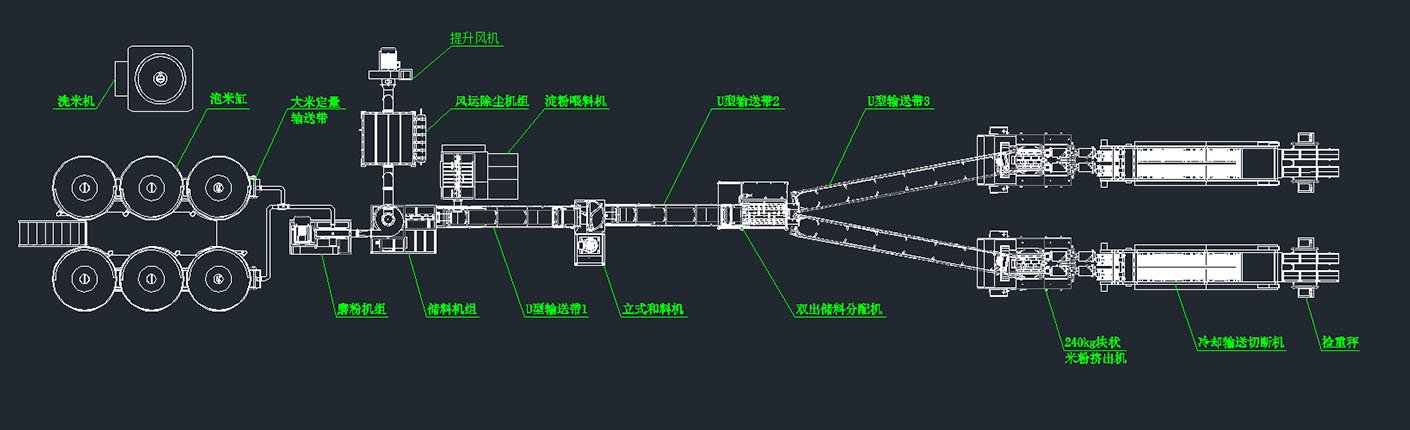

Product Layout

Process

  • 01

    Rice Proportioning

  • 02

    Slight Fermentation and Rice Soaking

  • 03

    Rinsing and Draining

  • 04

    Filtering and Soaking

  • 05

    Rice Conveying

  • 06

    Rice Grinding

  • 07

    Mixing and Powder Blending

  • 08

    Storage and Distribution

  • 09

    Gelatinization and Extruding into Strands

  • 10

    Cutting and Sizing

  • 11

    Weight Checking

  • 12

    Conveying

  • 13

    Automatic Boxing

  • 14

    Aging

  • 15

    Drying

  • 16

    Conditioning

  • 17

    Finished Product

Service Content

  • 01

    Pre- And Post-Production Process Training

  • 02

    Formulation And Process Services And On-Site R&D Training Services

  • 03

    Sterilization Process And Formulation Services And R&D Services

  • 04

    Anti-Aging Process And Formulation Services

  • 05

    Production Testing And Operation Training Services

  • 06

    On-Site Production Line Operation Guidance Services

  • 07

    Equipment And Process Technology Upgrade Services

  • 08

    Equipment And Process Customization And Modification Services

  • 09

    Production Line And Process After-Sales Services

  • 10

    Integrated Project Services

Core Stand-Alone Design Introduction

  • 01

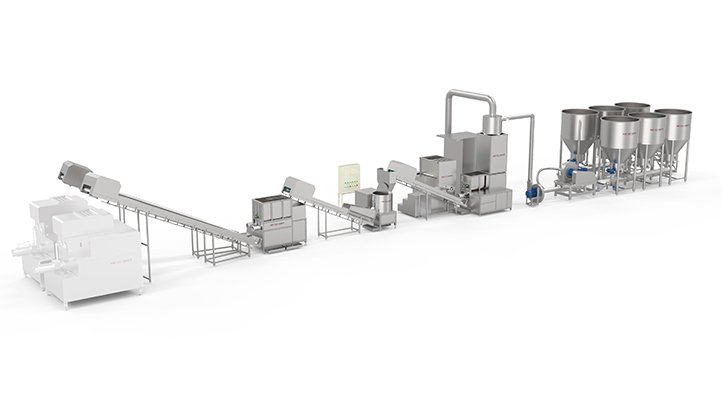

    Rice Pre-Processing System

  • 02

    Block Rice Noodle Extruder

  • 03

    Cooling Conveying Cutting Machine

  • 04

    Merging And Sorting Machines

  • 05

    Aging And Drying Machine

video-1

About HICOCA

Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.


Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.


Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
