Advanced Technology, Economical And Reasonable Production Efficiency
Category:Intelligent Packaging Equipment
Product Model:ZDGL

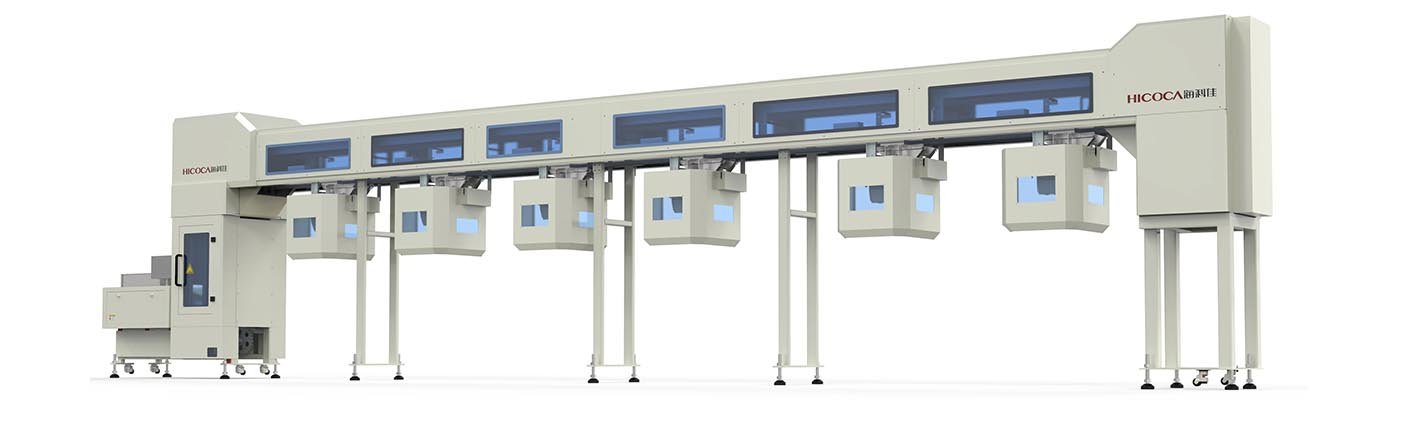

Overview:This Intelligent Material Feeding System is suitable for conveying loose noodles, spaghetti, rice noodles, and similar products, typically 200-240mm in length. The conveyor system, using a hopper-based circulation design, minimizes issues such as material spillage and breakage during transport.
Applicable Products:Dried noodles, pasta, rice noodles, etc.
For More Information, Please Call The Inquiry Hotline Below:
1. The equipment has a simple structure, effectively saving space in the customer's factory; the material conveying system using hoppers minimizes material spillage and mess.
2. The daily throughput capacity of this equipment can be adjusted between 50 and 110 tons per day (24 hours), suitable for customers with varying production capacities.
3. The enclosed, transparent protective cover design allows for easy observation and prevents accidental cuts that could cause damage to the equipment or injury to personnel.
4. The equipment is easy to operate and user-friendly.
5. With the hopper-based conveying system, each hopper can be controlled independently, allowing for precise material feeding to individual weighing machines without affecting the operation of other machines.
Rated Voltage (V) | Frequency (Hz) | Rated Power (Kw) | Gas Consumption (L/Min) | Daily Transportation Capacity (Tons/24h) | Device Dimensions (mm) |
三相380 | 50～60 | 3kw | 10n+3（一拖n） | 50～110 | Customized design based on the customer's factory layout |
Simple Operation
Land-Saving Design
Improved Processes
High Production Efficiency
01

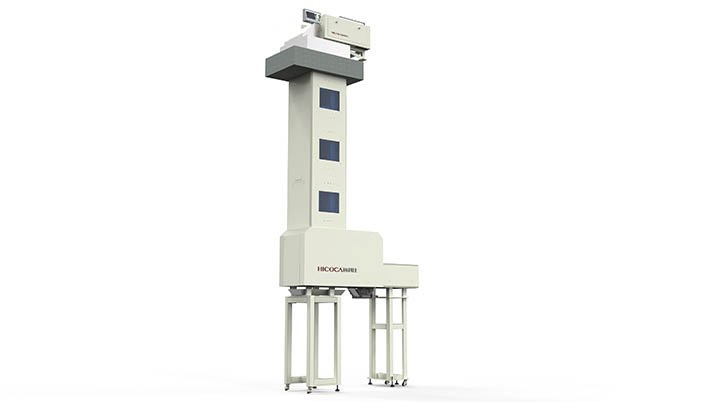

1.The vertical blanking device is a material transportation method. Its function is to transport materials from top to bottom, with multiple layers sharing a common channel.
2.Characteristics of the conveyed material: elongated shape, good linearity, and continuous, uninterrupted flow.
3.Features of the vertical material discharge structure: The conveying channel consists of two angled plates forming a cavity that vibrates at high frequency. The material continuously rolls and aligns itself within the angled cavity as it descends, ensuring a smooth and orderly flow of material from multiple layers.
4.This device features a simple design, small footprint, high practicality, ease of maintenance, and low failure rate.
02

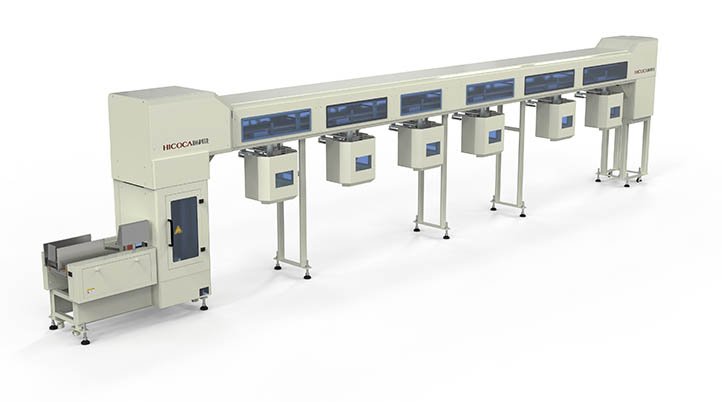

1. The equipment features a simple structure, effectively saving space in the client's factory; the material conveying system with a hopper reduces spillage and mess on the floor.
2. The daily throughput capacity of this equipment can be adjusted between 50 and 110 tons/day (24 hours), catering to clients with varying production needs.
3. The enclosed, transparent protective cover design allows for easy observation and prevents accidental cuts that could cause damage to the equipment or injury to personnel.
4. The equipment is easy to operate and user-friendly.
5. With the hopper-based conveying system, each hopper can be controlled independently, allowing for precise material feeding to individual weighing machines without affecting the operation of other machines.
03

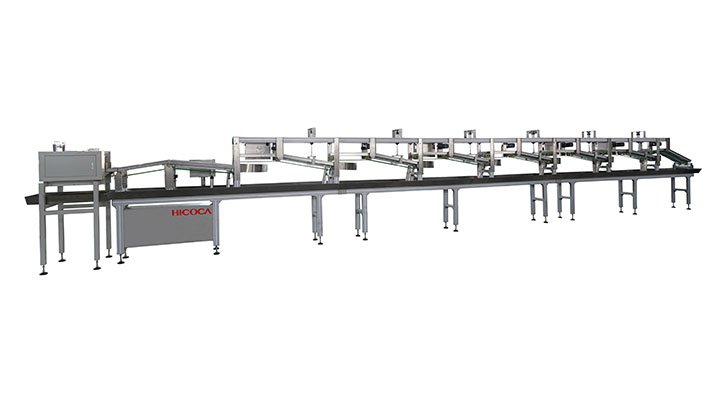

This equipment is primarily used for conveying and feeding long, thin food products such as dried noodles, pasta, and rice noodles (180–240 mm in length and 0.6–1.4 mm in width). It can be used in conjunction with paper packaging lines, loose noodle plastic packaging lines, and bundled plastic packaging lines.
Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.
Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.
Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
