Advanced Technology, Economical And Reasonable Production Efficiency
Category:Noodle Equipment

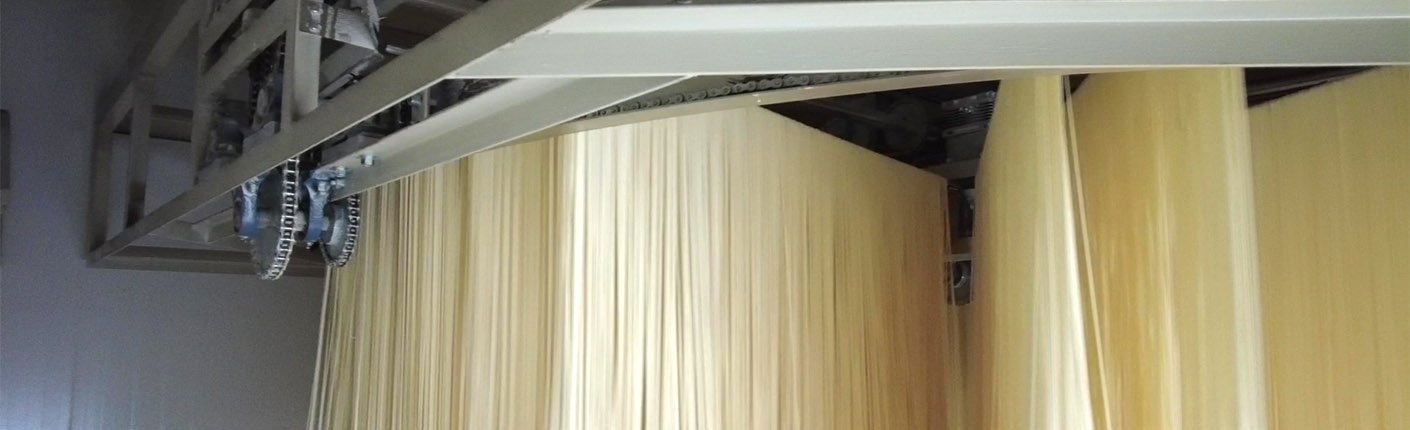

Overview:Qingdao HICOCA intelligent energy-saving noodle drying system combines excellent drying technology with the ultimate energy-saving solution to create drying equipment with stable production and excellent energy-saving effects.
Applicable Products:Drying process of dried noodles, hand-rolled noodles, rice noodles, etc.
For More Information, Please Call The Inquiry Hotline Below:
1. Qingdao HICOCA's intelligent energy-saving dried noodle drying system combines advanced drying technology with a sophisticated energy-saving solution to create drying equipment that delivers stable production and exceptional energy savings.
2. In terms of drying technology, this system addresses a range of challenges faced by traditional drying equipment, including unclear zoning, turbulent airflow, inaccurate temperature and humidity control, inflexible production, high energy consumption, and low automation, by utilizing zoning, airflow control, temperature control, humidity control, flexible drive, energy conservation, and intelligent control. This system promotes the upgrading of noodle drying processes and helps companies achieve energy-saving, efficient, and high-quality production.

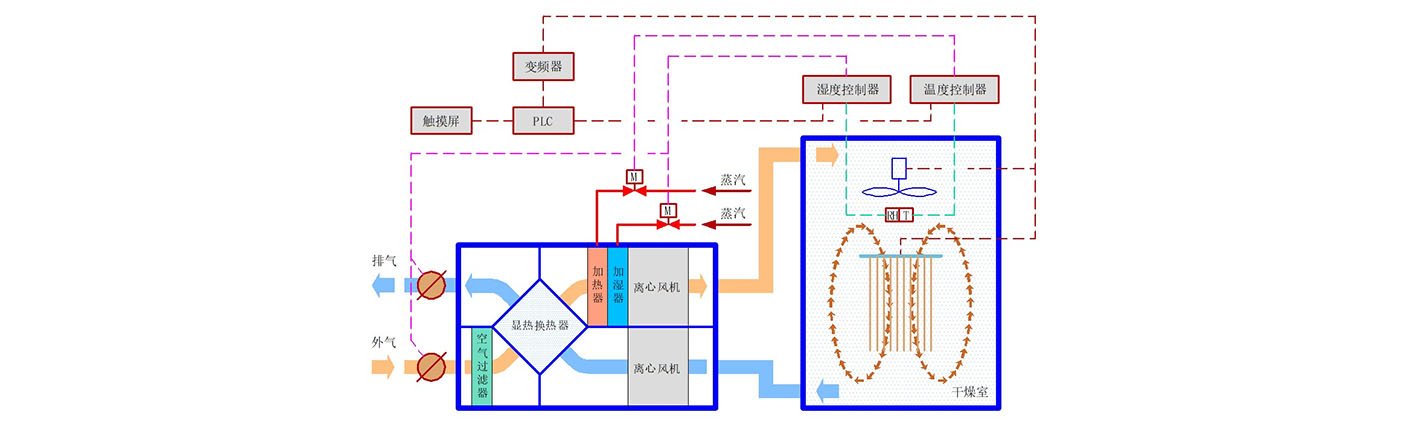

3. The intelligent energy-saving dried noodle drying system includes air intake and exhaust control units, a uniform air distribution system, a flexible conveying system, a temperature and humidity control system, a high-efficiency waste heat recovery system, and an intelligent control system. A human-machine interface enables automatic and precise control of the entire drying system.
4. The intelligent energy-saving noodle drying system offers excellent energy savings. Utilizing multi-stage recovery, multi-stage heating, and internal air recirculation, it achieves an average annual electricity consumption of 50kw/h per ton of noodles (this refers to energy consumed as a substitute for heat sources, excluding other power consumption such as fans and pumps).
5. Compared to traditional drying technologies, the intelligent energy-saving noodle drying system can reduce drying costs by up to 64%.
Flexible Drive
Energy Saving And Consumption Reduction
Intelligent Control
Zoning Scheme
Airflow Control
Temperature And Humidity Control
Graded Air Recovery
Internal Air Circulation
District Heating
01
◆ The zoning scheme is strictly based on the principles of noodle dehydration. Each zone is independent and operates as an independent unit.
◆ The airflow control scheme is based on the overall workshop design. Each drying zone is equipped with air supply and moisture removal functions. Air volume is individually adjusted through the air distribution system, achieving positive and negative pressure adjustments within each drying zone and ensuring uniform temperature and humidity along the length of each drying chamber.

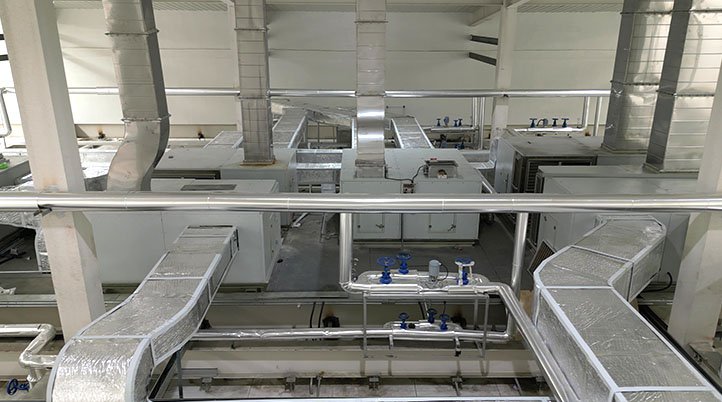

◆ Air-to-air heat exchangers within the air intake and exhaust units provide primary recovery of exhaust heat. Utilizing technologies such as graded recovery, internal air circulation, and zoned heating, we achieve optimal heat recovery and excellent energy savings.
02

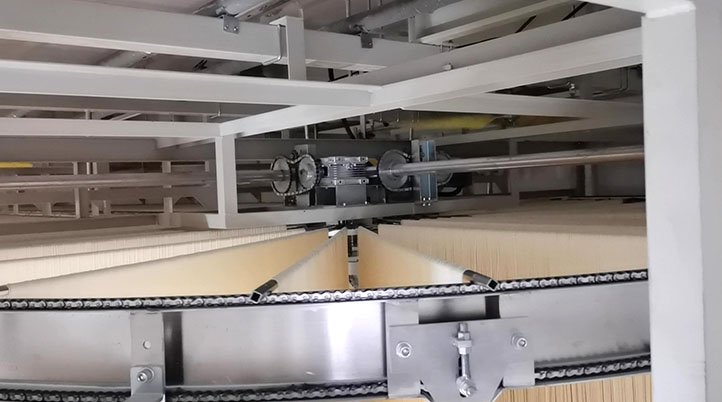

◆ The speed-adjustable noodle conveying device has adjustable noodle bar moving speed, adjustable spacing, and adjustable drying time of each drying link, which fully adapts to the flexible production of noodles.
03

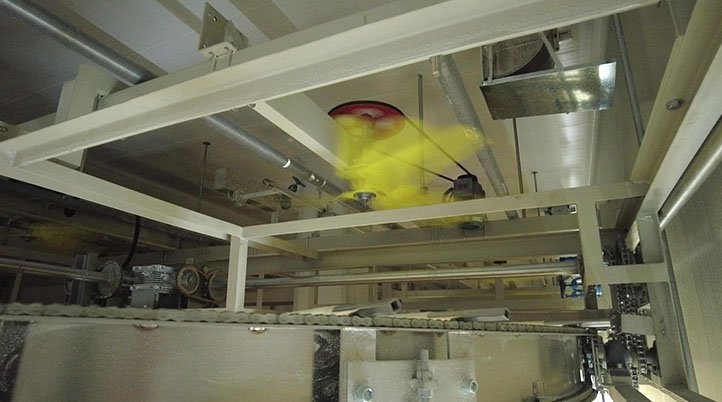

◆ The air intake, exhaust, and hot air mixing system delivers treated hot air to various locations in the room, returns it to the unit, and partially exhausts it outdoors, optimizing the location of each air intake and exhaust port. The speed of the mixing fan in different drying zones is adjustable to ensure uniform temperature and humidity throughout the room.
04

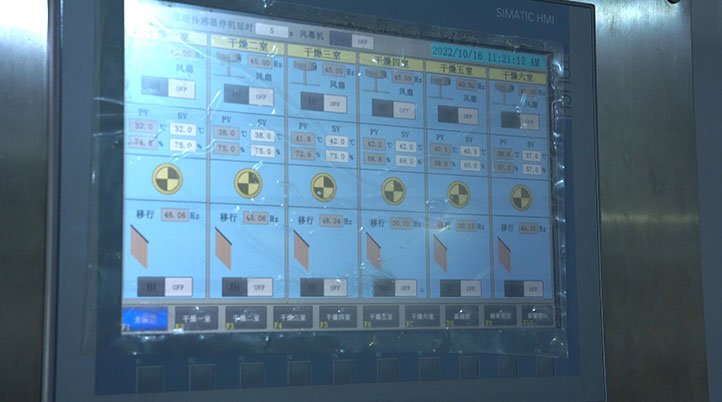

◆ The intelligent automatic control system realizes unmanned management of the drying room, and the human-machine dialogue touch screen operation interface can add remote monitoring according to user needs.
05

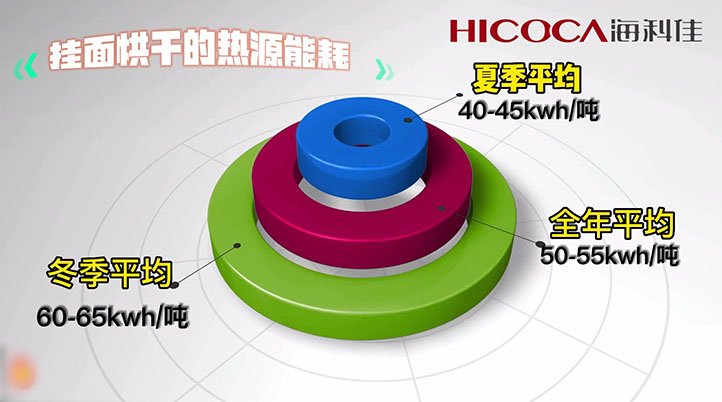

◆ The intelligent energy-saving noodle drying system has significant energy-saving effects. The heat source energy consumption for drying noodles is: an average of 40-45kwh/ton in summer, an average of 60-65kwh/ton in winter, and an average of about 50-55kwh/ton throughout the year.
06

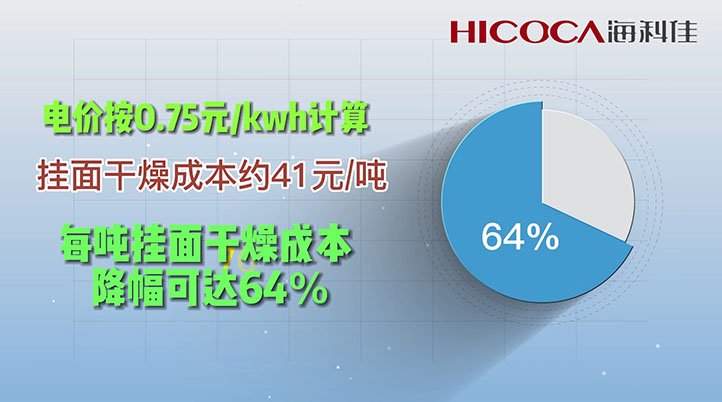

◆ Calculated at an electricity price of 0.75 yuan/kWh, or approximately 41 yuan/ton, the drying cost per ton of dried noodles can be reduced by up to 64%.
At the same time, this technology significantly reduces carbon emissions, truly contributing to the green development of dried noodle companies.
Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.
Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.
Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
