Product Display

Advanced Technology, Economical And Reasonable Production Efficiency

Product Description

  • _0002_DSC01066

◆ Knead the dough like you would by hand, mixing thoroughly and blending the dough with water.

◆ A double resting process lasting up to 10 hours stimulates the egg whites and revitalizes the dough.

◆ Five levels of pressure adjustment and overlapping presses develop a dense and resilient gluten network.

◆ 12-stage intelligent bionic rolling machine prevents gluten breakdown, repeatedly rolling the dough vertically and horizontally for a smooth, chewy texture.

◆ One-touch settings ensure uniform cuts with adjustable width, allowing you to create a variety of noodle shapes, including plain noodles, udon noodles, sliced noodles, and stewed noodles.


Product Parameters

Production Speed

Dough Pot Capacity

Machine Quality

Power

Dimensions

Power Supply

250-300 copies/hour

12.5 kg/pot

470kg

1.5Kw

W1335×D880×H1365

 (mm)

220v 50Hz



Product Layout

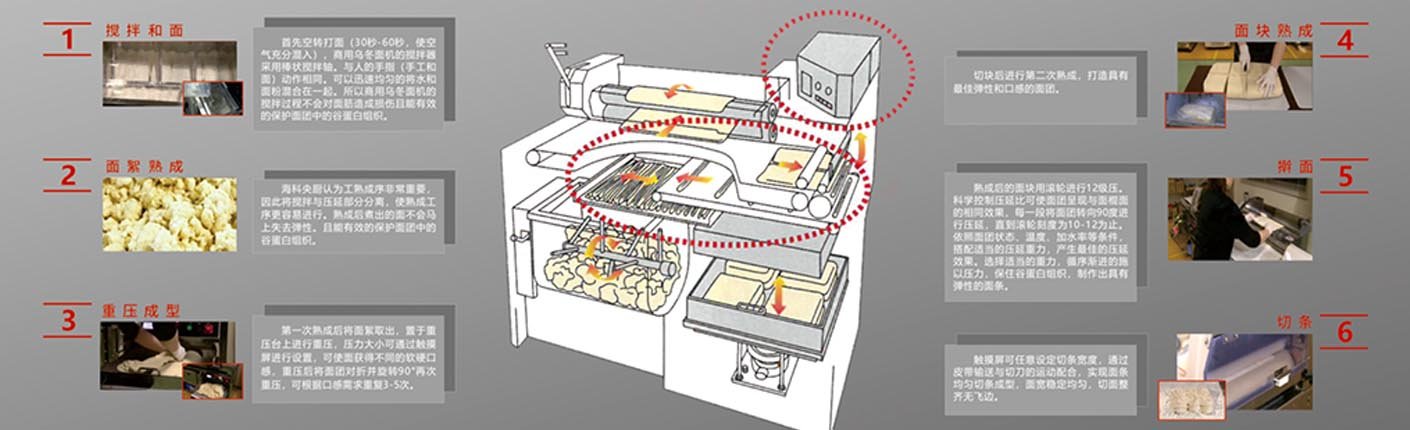

Process

  • 01

    Dough Mixing

  • 02

    Dough Resting

  • 03

    Dough Pressing

  • 04

    Pressed Dough Resting

  • 05

    Dough Rolling

  • 06

    Noodle Cutting

  • 07

    Noodle Collecting

Features

  • 01

    Intelligent Control

  • 02

    One-Touch Settings

  • 03

    Highly Integrated

  • 04

    1㎡ Compact Noodle Workshop

Core Stand-Alone Design Introduction

  • 01

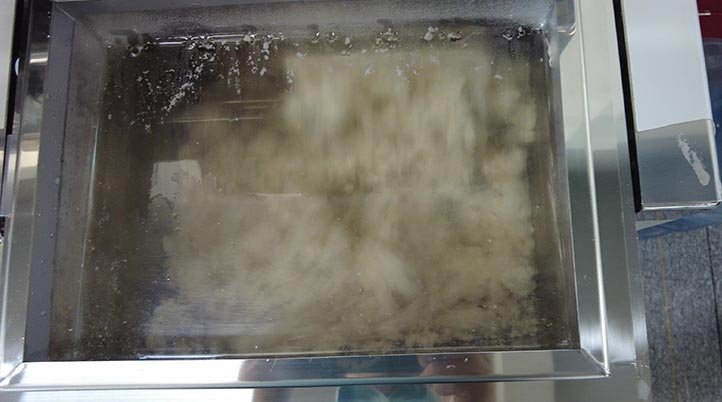

    1. Dough Kneading Device

    The mechanical design emulates manual labor. During the kneading process, the stirring rods are constructed like fingers, creating a stirring motion similar to that of a human hand, enabling quick and even mixing, ensuring thorough blending of the water and dough.

    The kneading process takes 5 minutes, with each batch of 15 kg of dough kneaded. Water is added in two steps. The first step involves stirring for 3 minutes, allowing the flour and solution to combine and begin to form gluten.

    After the second step, small particles begin to coalesce and grow larger. The stirring time during this stage is 2 minutes. This prevents damage to the dough and ensures that the dough remains loose, uniform in size and color, and has sufficient elasticity to form a ball when held and gently kneaded.

  • 02

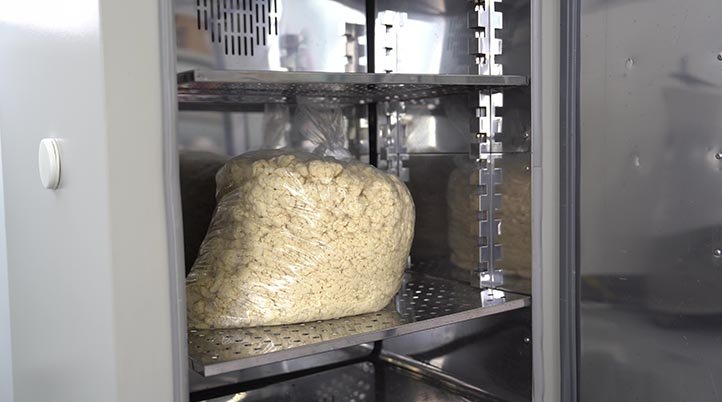

    2. Let The Dough Rise

    Resting the dough is a crucial step in the production of fresh noodles. We rest the dough twice, both in bulk and in blocks, using a constant temperature and humidity chamber for at least eight hours. This process allows the water and flour to better combine, allowing the dough to release air, relieving gluten pressure and activating enzymes. Measurements of the noodles after this second resting process show improvements in firmness, elasticity, and chewiness, significantly enhancing the noodles' texture.

  • 03

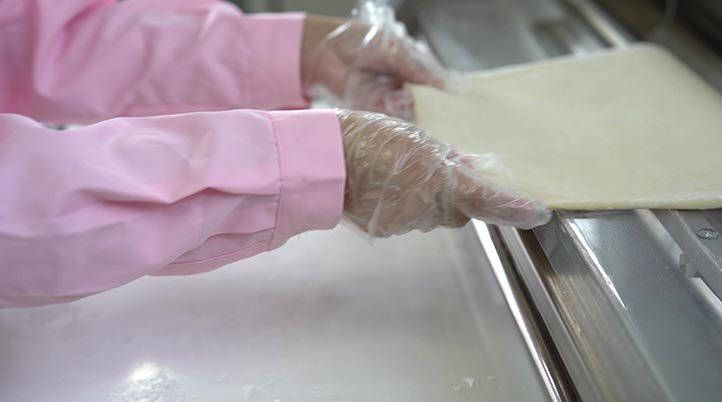

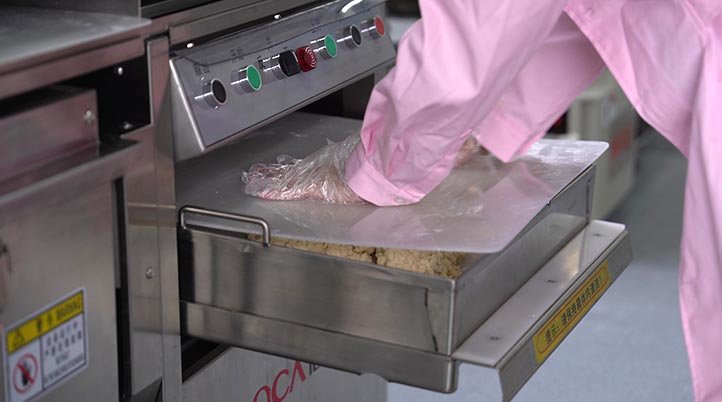

    3. pressed noodles

    The dough pressing device recreates the perfect strength of traditional hand-kneading. The rested dough is placed into the device and pressed. After the first pressing, the dough is folded in half, rotated 90 degrees, and pressed again, repeating this process five times.

    This stage strengthens the gluten tissue, forming a strong network. Too little pressing results in an incomplete gluten structure. Too much, however, can damage the gluten. Therefore, the dough pressing device effectively forms a tight network, resulting in a chewier noodle texture.

  • 04

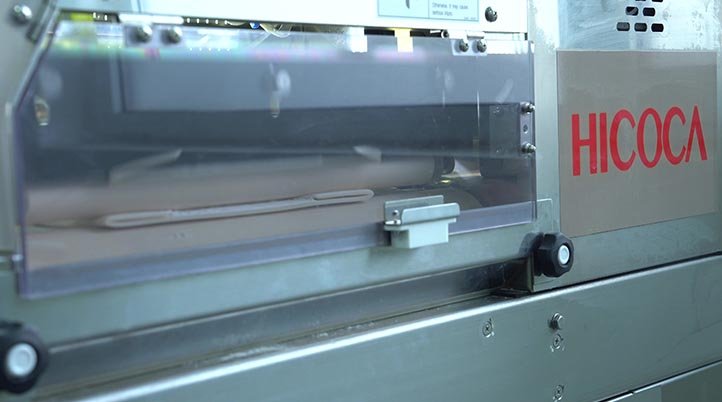

    4. Roll Out The Noodles

    Rolling the dough involves gradually rolling it at a controlled speed, while ensuring the gluten structure is not damaged. The optimal rolling effect is achieved by adjusting the appropriate rolling pressure based on the dough's condition, temperature, and water addition ratio.

    The Bionic Udon Noodle Machine is equipped with a 12-speed shift mechanism, which adjusts the roller width in stages, gradually thinning the dough by alternating vertical and horizontal directions. This process ensures more even moisture distribution in the dough and a tighter gluten network, laying the foundation for a superior texture.

    In addition, a measuring instrument monitors the dough's thickness in real time, ensuring a uniform thickness during fresh production with a more intelligent approach.

  • 05

    5. Sections

    Even the best dough won't produce delicious noodles if the final cutting process isn't handled properly. The thickness and aspect ratio of the noodles are crucial to their appearance after cooking.

    The automatic noodle cutting device eliminates the need for intuition and experience when cutting noodles. The width of the cut noodles can be adjusted flexibly between 1 and 40 mm, ensuring that the noodles fully absorb the soup, resulting in delicious, fresh noodles that fully meet consumer demand.

  • 06

    Application

    The HICOCA bionic udon noodle machine is highly integrated, requiring only 1 square meter of floor space. It's easy to operate, highly efficient, and can produce 300 servings of noodles per hour, making it a true "one square meter" noodle workshop.

    The bionic udon machine has a wide range of applications, including noodle shops, canteen group catering, and chain restaurants. For noodle shops, this machine can help you open a noodle shop, even if you don't know how to make noodles. For canteen group catering, it allows employees to experience the finer details of a "high-end noodle restaurant" right in the dining room, allowing consumers to enjoy freshly made, chewy, and richly flavored masterfully hand-rolled noodles.

video-1

About HICOCA

Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.


Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.


Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
