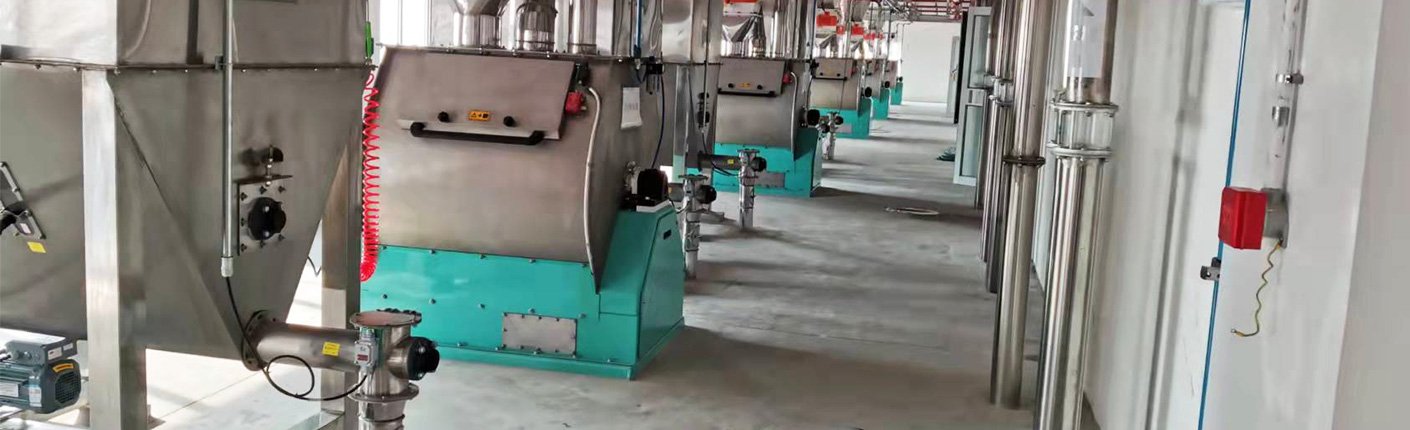

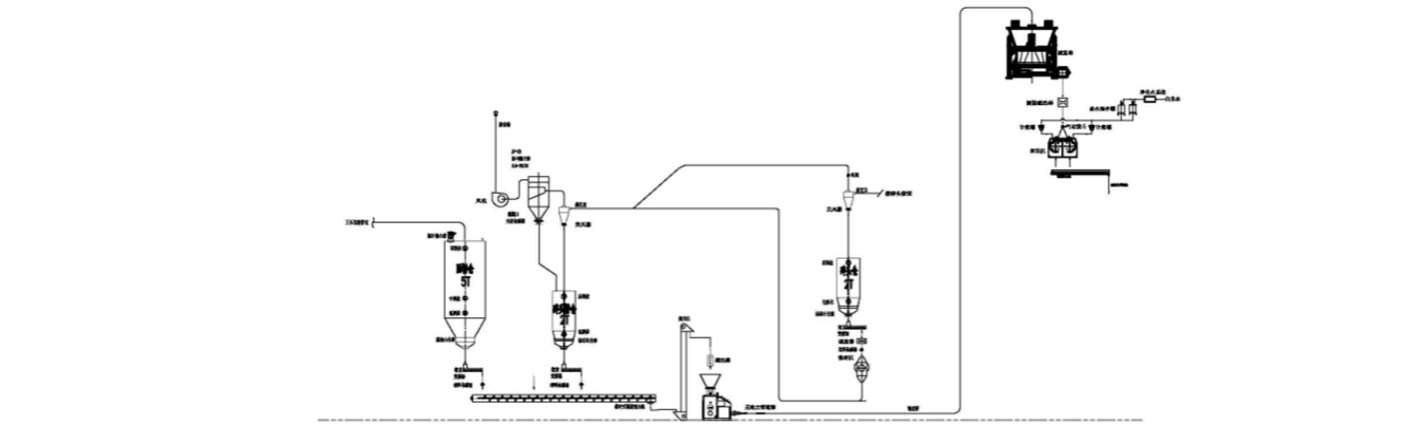

Product Name: Intelligent Batching And Powder Supply System

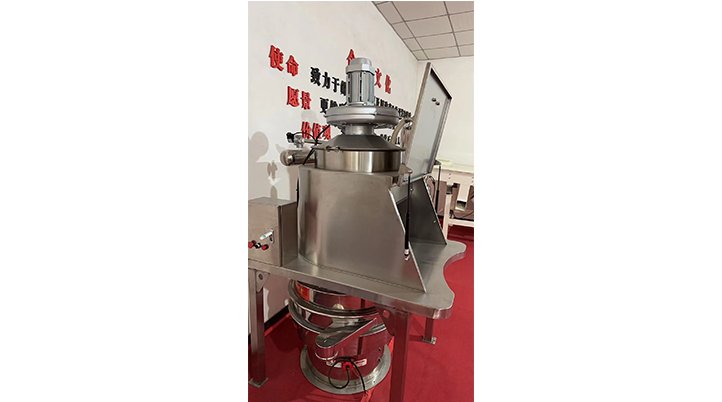

1) When the fan is pumping air, a certain negative pressure is achieved within the working chamber, drawing dust generated during feeding into the filter and preventing it from leaking outside the chamber. This effectively prevents direct contact between the operator and flying dust, protecting their health.

2) The vibrating screen is placed inside the silo, concentrating dust generated during operation inside the silo and filtering it through the fan suction filter.

3) The fan base is connected to the upper portion of the silo with quick-release flange bolts. When replacing the filter element, the fan and fan base must be removed. When replacing the screen or performing maintenance, it is best to remove the fan and fan base from the upper portion of the silo to reduce the weight on the upper portion, facilitate opening of the gas spring, and ensure safety and reliability.

4) The feed bin door is equipped with a gas spring pneumatic opener for easy opening. Sealing strips are embedded around the door to prevent dust from flying out. Backflush airbags are used only after the door is closed.

5) Centrifugal fan: This is the power element of the entire dust removal system, creating a certain negative pressure to prevent dust from escaping and removing dust that accumulates during screening, facilitating equipment operation.

6) Vibration motor: This is the power element of the entire discharge screening system, providing the vibrating force that activates the vibrating screen.

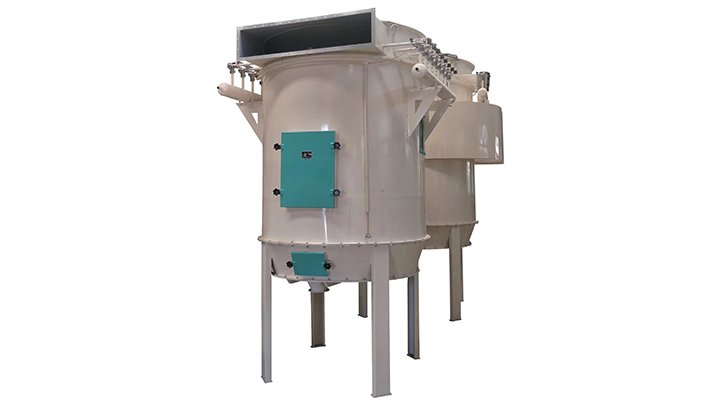

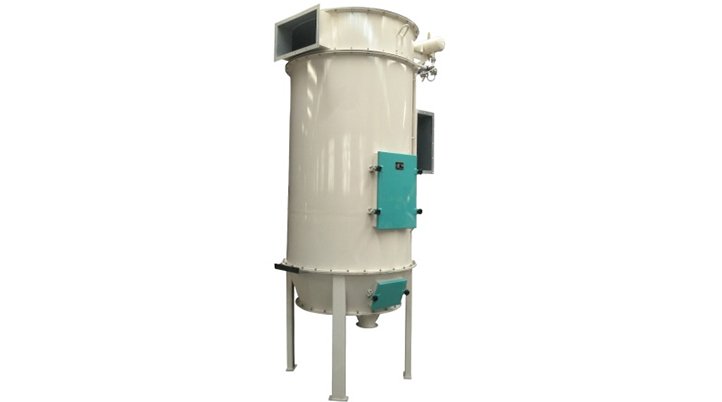

1. Main equipment for grain dust removal;

2. External pulse controller for easy adjustment;

3. Various dust collector structures for customer selection (high-pressure and low-pressure);

4. Customizable dust collector models based on user requirements

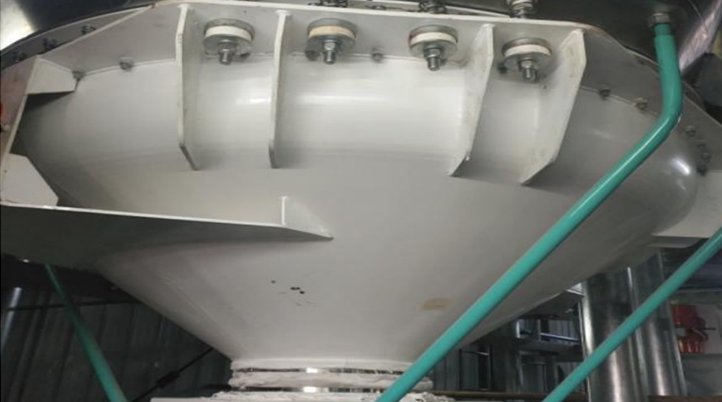

1. A vibration motor drives the hopper to vibrate at high frequencies. The central conical discharge tray ensures a slow and even discharge of material, preventing material from accumulating.

2. Integrated laser cutting ensures higher dimensional accuracy and more precise positioning.

3. The conical hopper is manufactured using integral spinning technology, resulting in a stronger and more robust structure.

4. The vibration angle and excitation force are adjustable, allowing users to easily adjust them based on the discharge situation.

5. The upper and lower connecting rings utilize integrally formed silicone flexible rings, which are non-toxic, non-aging, and highly durable when in contact with the material.

6. Rubber springs are used for shock absorption, eliminating the problem of breakage in the original connecting arm.

7. The overall structure has been optimized through computer-aided design, resulting in a more rational structure, smoother discharge, and improved flow performance.

The conveying process maintains zero moisture or temperature fluctuations, preventing separation of mixed powders.

The small diameter of the conveying pipe allows for easy piping and installation.

Leak-free, environmentally friendly, and energy-efficient.

Widely used for conveying a variety of powders in food, pharmaceuticals, chemicals, metallurgy, and other industries.

1. Input voltage: AC180~240V 50Hz

2. Output voltage: DC24V

3. Output current: 1A

4. Number of output channels: 140

5. Output pulse interval: 1~60 (1~99) seconds continuously adjustable

6. Output pulse width: 0.01-0.30 (0.01--0.99) continuously adjustable

7. Password: 1~99 optional

8. Dimensions: 268mmX188mm×90mm

9. Operating environment:

(1) Temperature -20°C--50°C

(2) Relative humidity ≤80%

(3) No severe corrosive gases and conductive dust

(4) No severe vibration or impact

10. Installation method: Hanging
