Product Display

Advanced Technology, Economical And Reasonable Production Efficiency

Product Description

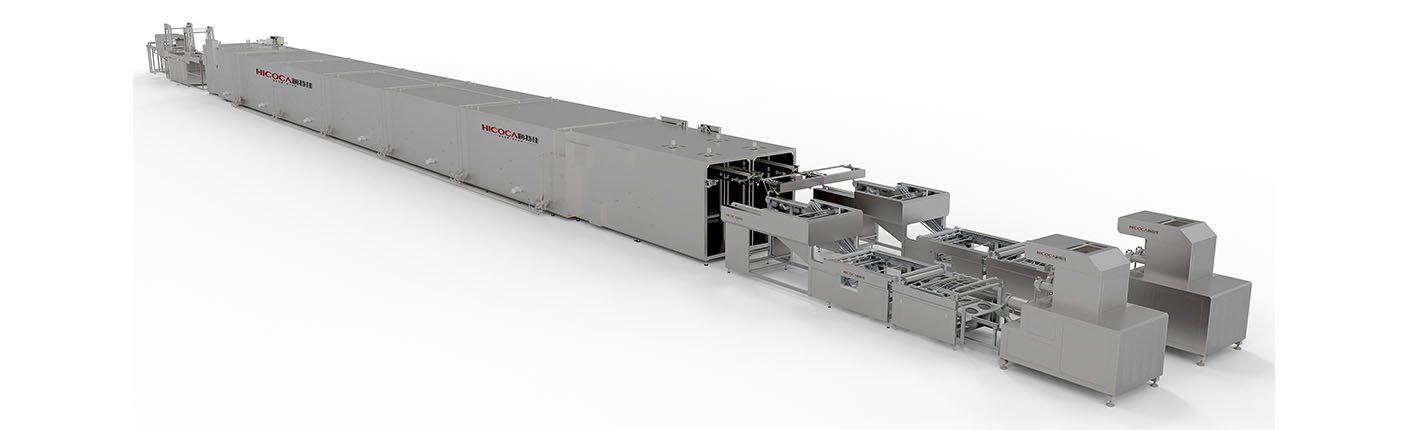

  • _0006_直条鲜粉
  • The PLC intelligent rice mixing system fundamentally solves the problem of accurate recipes.

  • PLC intelligently controls the front-end rice washing, soaking, crushing, and mixing processes, reducing labor intensity. Quantity control improves moisture accuracy.

  • The vermicelli noodles are uniform in thickness, glossy, flexible, chewy, and smooth, with a pure rice aroma.

Product Parameters

Production Capacity

Employment

Water Consumption

Power Consumption

Gas Consumption

900-1000kg/h

7-8 people/shift from rice preparation to packaging

3-3.5 tons/ton rice noodles


120-130 kWh/ton rice noodles

0.7-0.75 tons/ton rice noodles


Product Layout

布局

Process

  • 01

    Rice Proportioning

  • 02

    Washing, Soaking, Rinsing, and Filtering

  • 03

    Grinding into Powder

  • 04

    Storage and Powder Mixing

  • 05

    Storage (Aging) and Conveying

  • 06

    Feeding and Extruding into Strands

  • 07

    Separating, Cutting, and Hanging on Rods

  • 08

    Arranging Strands into Containers

  • 09

    Aging

  • 10

    Combining and Removing from Containers

  • 11

    Moistening, Separating, and Combing Strands

  • 12

    Cutting Vermicelli into Sections

  • 13

    Softening

  • 14

    Cooling, Filtering, and Conveying

  • 15

    Finished Product

Service Content

  • 01

    Pre- And Post-Production Process Training

  • 02

    Formulation And Process Services And On-Site Research And Development Training Services

  • 03

    Sterilization Process And Formulation Services And R&D Services

  • 04

    Anti-Aging Process And Formulation Services

  • 05

    Production Testing And Operation Training Services

  • 06

    On-Site Production Line Operation Guidance Services

  • 07

    Equipment And Process Technology Upgrade Services

  • 08

    Equipment And Process Customization And Modification Services

  • 09

    Production Line And Process After-Sales Services

  • 10

    Integrated Project Services

Core Stand-Alone Design Introduction

  • 01

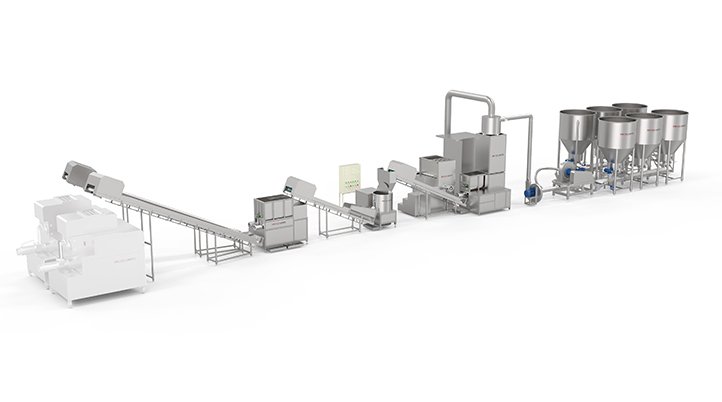

    Rice Pre-Processing System

    The intelligent rice mixing system fundamentally solves the problem of accurate recipes.

    PLC intelligently controls the front-end rice washing, soaking, crushing, and mixing systems, ensuring precise metering and moisture content.

  • 02

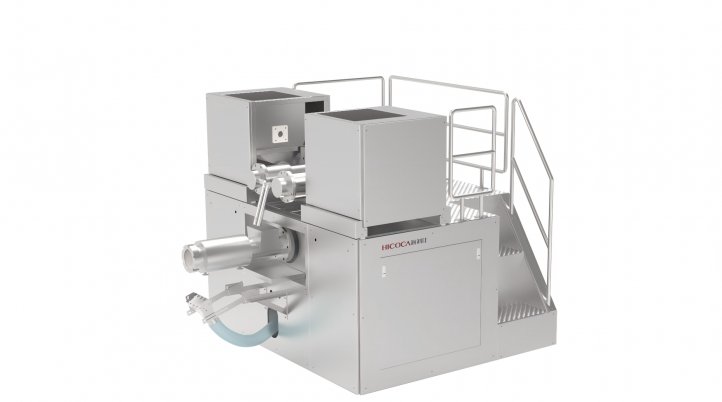

    400 Type Rice Noodle Extruder

    - Utilizes a dual-drum aging and single-drum extrusion system, achieving a aging degree of ≥90% and an hourly production capacity of 350-400 kg.

    - High extrusion efficiency and excellent operational stability. The resulting vermicelli is smooth and uniform in thickness.

    - Utilizes a platform-based system, making the drum and screw rollers easy to clean.

  • 03

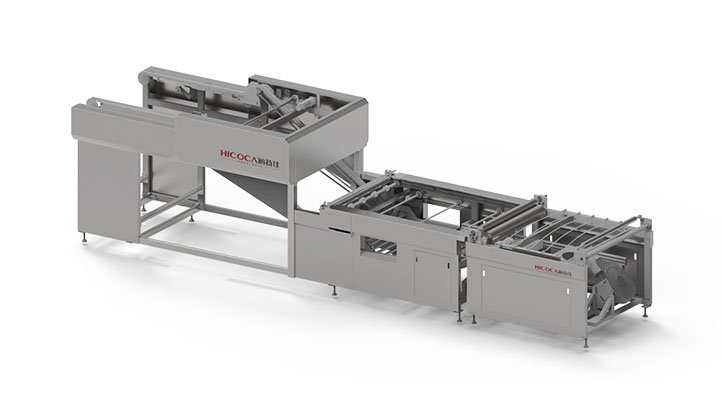

    Scattering And Cutting Hanging Rod Machine

    The PLC system evenly matches the speed of the rice noodle dispensing, cutting, and hanging machine with the rice noodle dispensing machine, controlling the cooling, dispensing, and cutting and hanging effects.

    The system prevents rice noodles from clumping and ensures uniform, consistent product appearance by cutting them into uniform, fixed-length segments.

  • 04

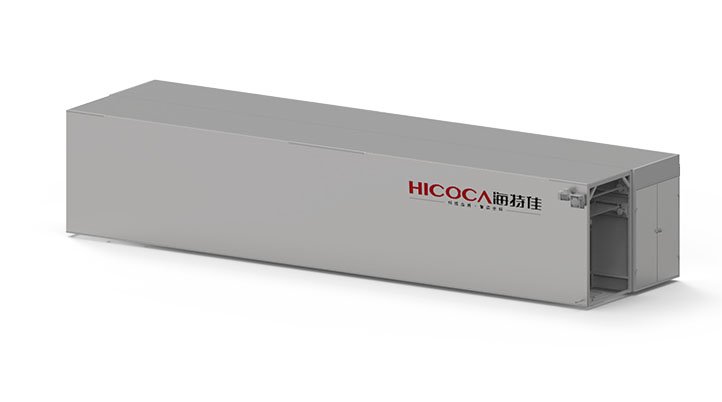

    Aging Chamber

    Automatic temperature, humidity, speed, and time control, with one-touch parameter settings.

    Patented steam-proof inlet and outlet technology and hot air agitation ensure uniform temperature and humidity throughout the entire chamber, ensuring optimal aging results.

  • 05

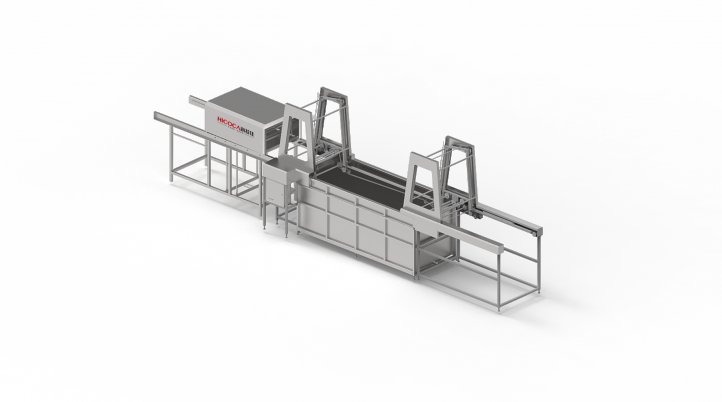

    Automatic Powder Rubbing And Combing Machine

    - Using a PLC system and digital one-button operation, the machine fully soaks the aged rice flour with water, meeting the swelling requirements of the automatic spreading and combing functions, solving 99% of the rice flour sticking problem.

  • 06

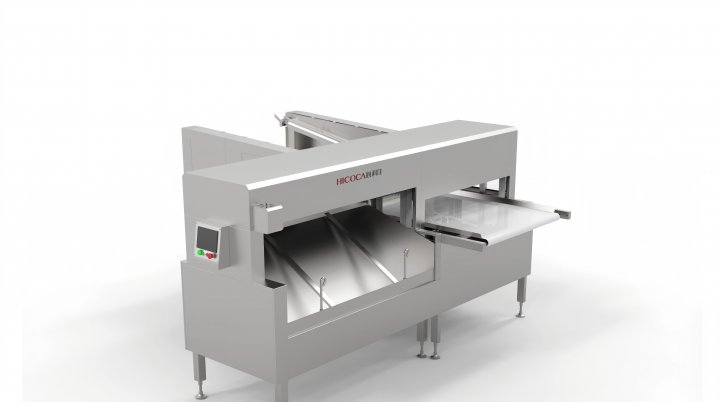

    Belt-Type Powder Cutting Machine

    A PLC system automatically controls the horizontal lowering of the rod, cutting the noodles to length, returning the rod, and conveying the noodles to the net.

    Noodle length, lowering and returning the rod, cutting, and feeding the noodles can all be set with one click, all with data input.

  • 07

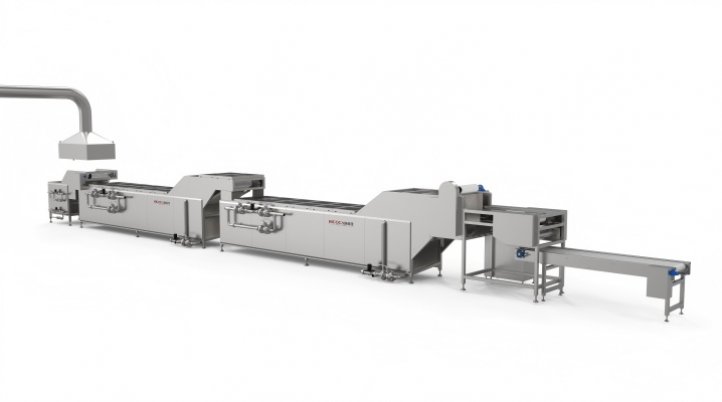

    Softening, Cooling And Filtration System

    - A PLC system automatically controls the temperature and timing of the vermicelli softening process, achieving the desired softening and moisture content for the product's brewing quality.

    - A PLC system automatically controls the cooling water temperature and time to achieve the desired moisture content and toughness after blanching. The water is then filtered and transported to the packaging section.

video-1

About HICOCA

Qingdao HICOCA Intelligent Equipment Technology Co., Ltd. is committed to providing customers with full-process intelligent food production and packaging line solutions. It is a national high-tech enterprise, awarded the National Noodle Packaging Equipment R&D Center by the Ministry of Agriculture, undertakes the major national 13th Five-Year Plan projects, and is a Shandong Provincial Technology Center, a specialized and innovative enterprise, a Shandong Provincial Industrial Design Center, a leading agricultural industrialization enterprise in Qingdao, and a strategic emerging enterprise.


Qingdao Hicoca Group is comprised of a number of intelligent equipment subsidiaries with independent R&D and production capabilities, including Qingdao Hicoca Yongjia Intelligent Technology Co.,Ltd, Qingdao Hicoca Central Kitchen Intelligent Technology Co.,Ltd., Qingdao Hicoca Intelligent Technology Co.,Ltd and Qingdao Hicoca international Trading Co.,Ltd.The company's products include: food packaging production lines, noodle drying room production lines, fried/non-fried instant noodle production lines, udon noodle production lines, steamed bun and dumpling intelligent production lines, rice noodle intelligent production lines, fresh wet noodle/semi-dry noodle intelligent production lines, extruded noodle production lines, hand-cut noodle production lines, and intelligent dumpling production lines. The company's business footprint covers all major provinces, cities, and autonomous regions in the motherland, and exports to 38 countries and regions abroad.


Hicoca currently has over 460 employees, including over 90 in R&D and over 60 in technical support. Annual R&D investment accounts for over 10% of sales revenue. The company's manufacturing base is equipped with world-leading processing equipment, including imported German laser cutting centers, vertical machining centers, Frank CNC machine tools, and OTC robotic welding. Haikejia has established a comprehensive ISO9001 international quality management system and a GB/T2949-2013 intellectual property management system. The company has applied for over 400 national patents, numerous PCT international patents, and 17 copyrights.
